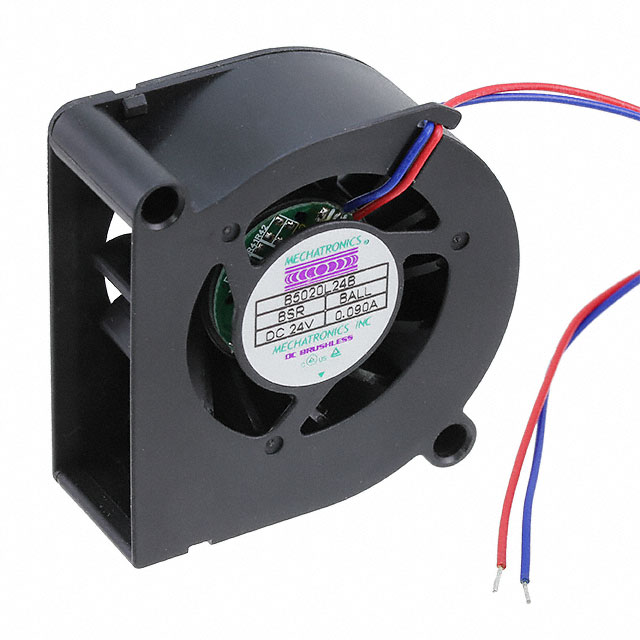

B5020L24F-BSR

Obsolete

Mechatronics Fan Group

FAN BLOWER 51X20MM 24VDC WIRE

Search across all available documentation for this part.

Obsolete

Mechatronics Fan Group

FAN BLOWER 51X20MM 24VDC WIRE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Blower 24VDC Square/Rounded - 51mm L x 50mm H Ball 6.0 CFM (0.168m³/min) 2 Wire Leads

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	B5020L24F-BSR	B5020 Series

Air Flow	6 CFM	6 CFM
Air Flow	0.168 m³/min	0.168 m³/min
Bearing Type	Ball	Ball
Current Rating (Amps)	0.09 A	0.09 - 120 mA
Fan Type	Blower	Blower
Features	Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP), Conformal Coating
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	29 dB(A)	29 dB(A)
RPM	4000 RPM	4000 RPM
Size / Dimension	Square/Rounded	Square/Rounded
Size / Dimension [x]	51 mm	51 mm
Size / Dimension [y]	50 mm	50 mm
Static Pressure	49.8 Pa	49.8 Pa
Static Pressure	0.2 in H2O	0.2 in H2O
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	24 VDC	12 - 24 VDC
Weight	22.23 g	22.23 g
Weight	0.049 lb	0.049 lb
Width [y]	20 mm	20 mm

FAN BLOWER 51X20MM 12VDC WIRE

Part	Static Pressure	Static Pressure	Air Flow	Air Flow	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	RPM	Noise	Fan Type	Bearing Type	Weight	Weight	Material - Blade	Termination	Current Rating (Amps)	Width [y]	Voltage - Rated	Features
Mechatronics Fan Group B5020L12B-BSR-CC	49.8 Pa	0.2 in H2O	6 CFM	0.168 m³/min	51 mm	Square/Rounded	50 mm	4000 RPM	29 dB(A)	Blower	Ball	22.23 g	0.049 lb	Polybutylene Terephthalate (PBT)	2 Wire Leads	120 mA	20 mm	12 VDC	Conformal Coating, Thermal Overload Protector (TOP)
Mechatronics Fan Group B5020L24F-BSR	49.8 Pa	0.2 in H2O	6 CFM	0.168 m³/min	51 mm	Square/Rounded	50 mm	4000 RPM	29 dB(A)	Blower	Ball	22.23 g	0.049 lb	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.09 A	20 mm	24 VDC	Thermal Overload Protector (TOP)
Mechatronics Fan Group B5020L24B-BSR	49.8 Pa	0.2 in H2O	6 CFM	0.168 m³/min	51 mm	Square/Rounded	50 mm	4000 RPM	29 dB(A)	Blower	Ball	22.23 g	0.049 lb	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.09 A	20 mm	24 VDC	Thermal Overload Protector (TOP)
Mechatronics Fan Group B5020L12B-BSR	49.8 Pa	0.2 in H2O	6 CFM	0.168 m³/min	51 mm	Square/Rounded	50 mm	4000 RPM	29 dB(A)	Blower	Ball	22.23 g	0.049 lb	Polybutylene Terephthalate (PBT)	2 Wire Leads	120 mA	20 mm	12 VDC	Thermal Overload Protector (TOP)
