430097-507

Active

Laird Thermal Systems, Inc.

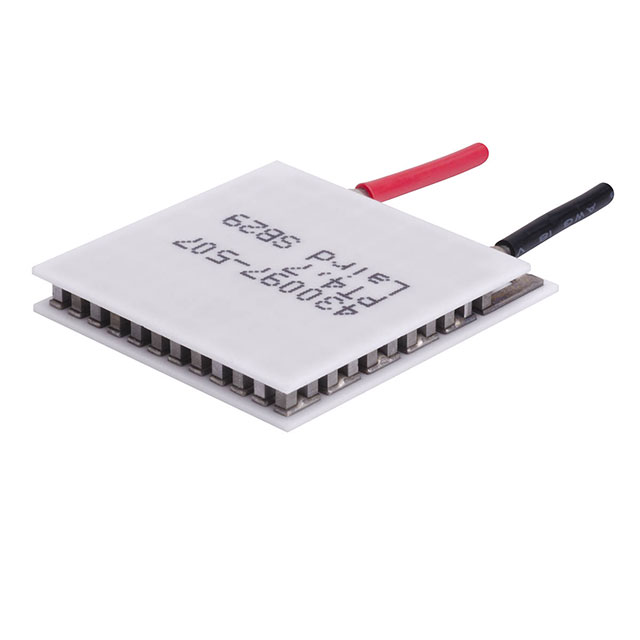

PELTIER MOD 34X30X4.14MM 3.8A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsItem Num Cross Ref List Datasheet +2

430097-507

Active

Laird Thermal Systems, Inc.

PELTIER MOD 34X30X4.14MM 3.8A

Deep-Dive with AI

DocumentsItem Num Cross Ref List Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	430097-507

Current - Max [Max]	3.8 A
Delta Tmax @ Th	67 °C
Features	Lead Wires, Non-Sealed
Height [z]	4.14 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	18.4 W
Resistance	1.95 Ohms
Size / Dimension [x]	34 mm
Size / Dimension [y]	30 mm
Voltage - Max [Max]	8.1 V

430097 Series

PELTIER MOD 34X30X4.14MM 3.8A

Part	Operating Temperature	Resistance	Size / Dimension [y]	Size / Dimension [x]	Number of Stages	Qmax @ Th	Voltage - Max [Max]	Height [z]	Current - Max [Max]	Features	Delta Tmax @ Th
Laird Thermal Systems, Inc. 430097-507	80 °C	1.95 Ohms	30 mm	34 mm	1	18.4 W	8.1 V	4.14 mm	3.8 A	Lead Wires, Non-Sealed	67 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

430097 Series

Peltier Module 18.4W @ 25°C 3.8 A 80°C

Documents

Technical documentation and resources

Item Num Cross Ref List

Datasheet

Thermoelectric Cooler Options

Datasheet
