4-102975-0-02

Active

TE Connectivity AMP Connectors

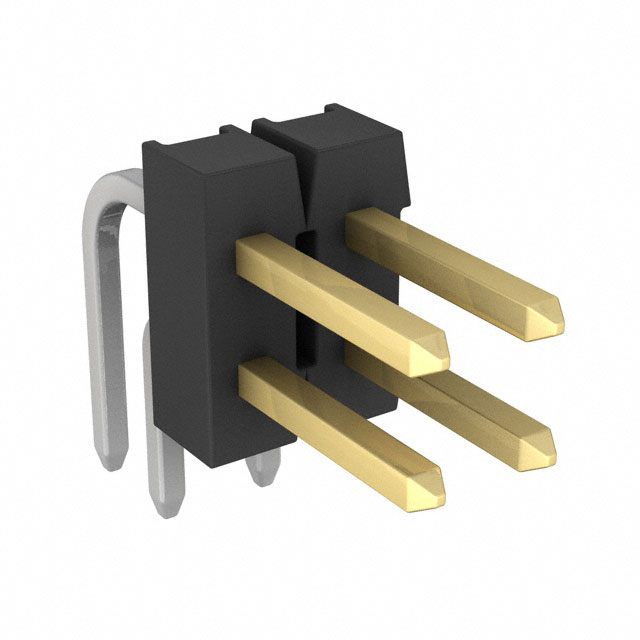

CONN HEADER R/A 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4-102975-0-02

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-102975-0-02	102975 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 - 15 µm
Contact Finish Thickness - Mating	-	0.38 Ąm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	6.05 mm	6.05 mm
Insulation Height	0.238 in	0.238 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	4	2 - 80
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

102975 Series

CONN HEADER R/A 24POS 2.54MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Shape	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Termination	Connector Type	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Current Rating (Amps)	Number of Positions	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Fastening Type	Insulation Material	Style	Contact Length - Post [x]	Contact Length - Post	Number of Positions	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 4-102975-0-12	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	24	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-09	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	18	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 5-102975-5	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	10	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-09	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	18	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-34	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	68	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-26	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	52	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-05	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	10	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-30	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	60	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-07	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	14	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-23	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	46	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-28	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	56	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-11	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	22 positions	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-17	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	34	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-05	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	10	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-18	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	36	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-20	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	40	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-34	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	68	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-01	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	2			2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-37	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	74	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-08	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A		0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm	16
TE Connectivity AMP Connectors 4-102975-0-36	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	72	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-04	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	8	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-29	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	58	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-03	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 Ąm	100 Ąin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	6	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold		15 Ąin	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm		0.38 Ąm
TE Connectivity AMP Connectors 4-102975-0-18	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	36	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-06	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	12	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-04	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	8	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-25	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	50	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-38	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	76	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-33	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	66	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-25	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	50	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-19	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	38	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-17	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	34	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-27	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	54	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-23	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	46	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-03	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	6	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-21	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	42	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-37	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	74	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-01	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	2			2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-19	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	38	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-08	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A		0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm	16
TE Connectivity AMP Connectors 9-102975-0-14	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	28	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-16	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A		0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-11	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	22 positions	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-32	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	64	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-06	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	12	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-21	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	42	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-02	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	4	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-24	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	48	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-39	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	78	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-39	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	78	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-38	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	76	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-13	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	26	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-32	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	64	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-35	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	70	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-27	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	54	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-16	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A		0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-24	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	48	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-29	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	58	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-22	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	44	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-10	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	20	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-35	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	70	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-30	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	60	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-13	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	26	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 9-102975-0-36	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin	0.318 "	8.08 mm	Copper Alloy	3 A	72	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	80	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm
TE Connectivity AMP Connectors 4-102975-0-07	-65 ░C	105 ░C	2	Square	Unshrouded	2.54 µm	100 µin	Through Hole, Right Angle	6.05 mm	0.238 in	UL94 V-0	Black	All	Solder	Breakaway, Header	Tin-Lead	0.318 "	8.08 mm	Copper Alloy	3 A	14	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	15 µin	0.38 µm	Male Pin	Push-Pull	Thermoplastic	Board to Board, Cable	0.11 in	2.79 mm

Description

General part information

102975 Series

Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
