V708-75/2-215

Active

Boyd Laconia, LLC

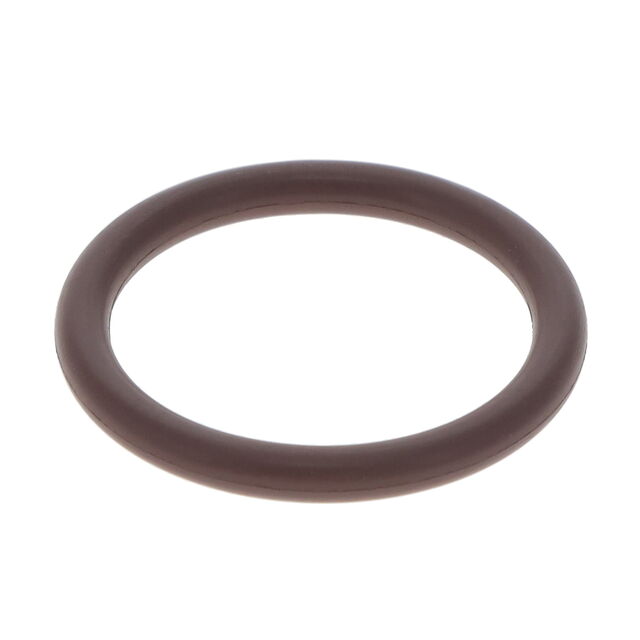

FLUOROCARBON -215 O-RING

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

FLUOROCARBON -215 O-RING

Technical Specifications

Parameters and characteristics for this part

Part	Hardness	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Dash Number	Width / Cross Section [y]	Width / Cross Section [y]	Color	Material	Operating Temperature [Min]	Operating Temperature [Max]	Dash Number	Diameter - Inside	Width / Cross Section [x]	Width / Cross Section [x]
Boyd Laconia, LLC V708-75/2-222	75 Shore A	1.484 in	37.69 mm	-222	3.53 mm	0.139 in	Brown	Fluorocarbon	-29 °C	204 °C
Boyd Laconia, LLC V708-75/2-214	75 Shore A	0.984 in	24.99 mm	-214	3.53 mm	0.139 in	Brown	Fluorocarbon	-29 °C	204 °C
Boyd Laconia, LLC V708-75/2-218	75 Shore A	1.234 in	31.34 mm		3.53 mm	0.139 in	Brown	Fluorocarbon	-29 °C	204 °C	-218
Boyd Laconia, LLC V708-75/2-008	75 Shore A	0.176 in	4.47 mm		1.78 mm	0.07 in	Brown	Fluorocarbon	-29 °C	204 °C	-008
Boyd Laconia, LLC V708-75/2-111	75 Shore A	0.424 in			2.62 mm	0.103 in	Brown	Fluorocarbon	-29 °C	204 °C	-111	10.77 mm
Boyd Laconia, LLC V708-75/2-112	75 Shore A	0.487 in	12.37 mm		2.62 mm	0.103 in	Brown	Fluorocarbon	-29 °C	204 °C	-112
Boyd Laconia, LLC V708-75/2-113	75 Shore A	0.549 in	13.94 mm		2.62 mm	0.103 in	Brown	Fluorocarbon	-29 °C	204 °C	-113
Boyd Laconia, LLC V708-75/2-110	75 Shore A	0.362 in	9.19 mm		2.62 mm	0.103 in	Brown	Fluorocarbon	-29 °C	204 °C	-110
Boyd Laconia, LLC V708-75/2-114	75 Shore A	0.612 in	15.54 mm		2.62 mm	0.103 in	Brown	Fluorocarbon	-29 °C	204 °C	-114
Boyd Laconia, LLC V708-75/2-325	75 Shore A	1.475 "	37.47 mm				Brown	Fluorocarbon	-29 °C	204 °C	-325		0.21 in	5.33 mm
