BVB-I-R005-1.0
ActiveIsabellenhuette USA

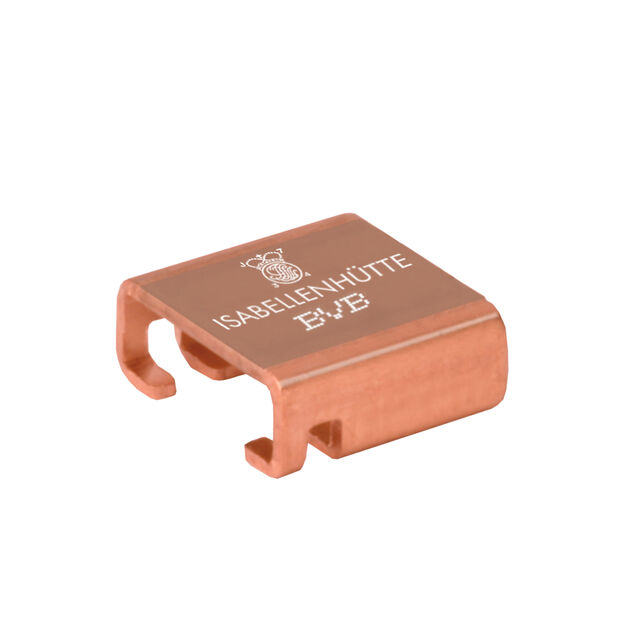

RESISTOR - ISA-WELD SHUNT, 0.005
BVB-I-R005-1.0
ActiveIsabellenhuette USA
RESISTOR - ISA-WELD SHUNT, 0.005
Description
General part information
BVB-I-R005-1.0
5 mOhms ±1% 3W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | BVB-I-R005-1.0 |
|---|---|
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) | 0.117 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | Nonstandard |
| Package Name | 2725 |
| Power (Watts) | 3 W |
| Resistance | 5 mOhms |
| Size / Dimension Length | 0.272 in |
| Size / Dimension Width | 0.26 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
