ZHTM-12/6-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

HTSHRINK0.472"X98.4'BLACK METER

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

HTSHRINK0.472"X98.4'BLACK METER

Technical Specifications

Parameters and characteristics for this part

Specification	ZHTM-12/6-0-SP

Color	Black
Features	Fluid Resistant, Flame Retardant
Inner Diameter - Recovered	5.99 mm
Inner Diameter - Recovered	0.236 in
Inner Diameter - Supplied [diameter]	0.472 in
Inner Diameter - Supplied [diameter]	11.99 mm
Length	Enter Number of Meters in Order Quantity
Material	Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Recovered Wall Thickness	0.89 mm
Recovered Wall Thickness	0.035 in
Shrink Temperature	80 °C
Shrinkage Ratio	2 to 1
Spool Size	98.4 ft
Spool Size	30 m
Type	Tubing, Flexible

HTSHRINK0.472"X98.4'BLACK METER

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Spool Size	Spool Size	Type	Inner Diameter - Recovered	Inner Diameter - Recovered	Features	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio	Shrink Temperature
TE Connectivity Aerospace, Defense and Marine ZHTM-12/6-0-SP	0.472 in	11.99 mm	Enter Number of Meters in Order Quantity	Polyolefin (PO), Irradiated, Halogen Free	-30 ░C	105 ░C	Black	98.4 ft	30 m	Tubing, Flexible	5.99 mm	0.236 in	Flame Retardant, Fluid Resistant	0.89 mm	0.035 in	2 to 1	80 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

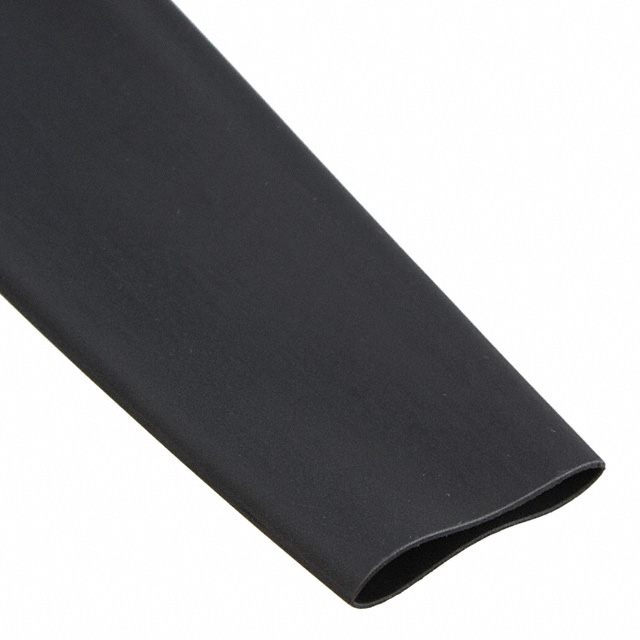

Heat Shrink Tubing, Flexible 0.472" (11.99mm) 2 to 1 Black Enter Number of Meters in Order Quantity
