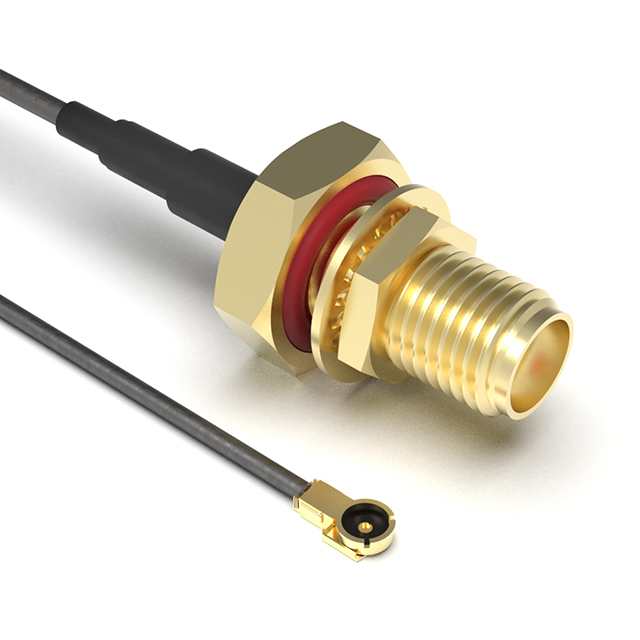

CABLE 385 RF-200-A-2

Active

GCT (Gradconn)

COAX CBL SMA TO MHF4L 7.8"

Search across all available documentation for this part.

Active

GCT (Gradconn)

COAX CBL SMA TO MHF4L 7.8"

Technical Specifications

Parameters and characteristics for this part

Specification	CABLE 385 RF-200-A-2

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	I-PEX MHF4L Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	1.13mm OD Coaxial Cable
Color	Black
Features	IP Rated Unmated
Frequency - Max [Max]	6000 MHz
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Length	7.874 in
Length	200 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	SMA to I-PEX MHF4L

COAX CBL SMA TO MHF4L 7.8"

Part	1st Contact Gender	2nd Contact Gender	1st Connector Mounting Type	Features	2nd Connector Mounting Type	Ingress Protection	Frequency - Max [Max]	Color	1st Connector	Overall Impedance	2nd Connector	Cable Type	Length	Length	Cable Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Style	1st Connector Mounting Feature
GCT (Gradconn) CABLE 385 RF-200-A-2	Female	Female	Panel Mount	IP Rated Unmated	Free Hanging (In-Line)	IP67/IP68 - Dust Tight, Waterproof	6000 MHz	Black	SMA Jack	50 Ohms	I-PEX MHF4L Plug, Right Angle	1.13mm OD Coaxial Cable	7.874 in	200 mm	50 Ohms	85 °C	-40 °C	SMA to I-PEX MHF4L	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to I-PEX MHF4L 1.13mm OD Coaxial Cable 7.874" (200.00mm)
