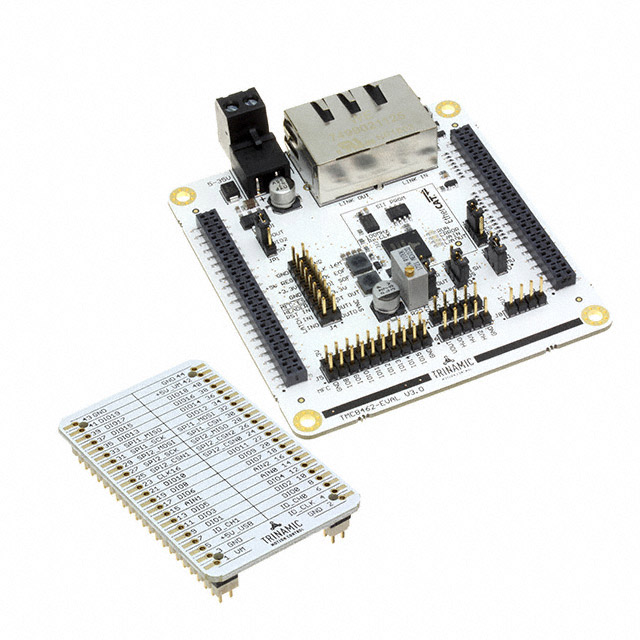

TMC8462-EVAL
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR TMC8462
Deep-Dive with AI
Search across all available documentation for this part.
TMC8462-EVAL
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR TMC8462
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC8462-EVAL | TMC8462 Series |
|---|---|---|
| Function | Ethernet | Controller, Ethernet |
| Interface | - | SPI |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Package / Case | - | 121-LFBGA |
| Primary Attributes | EtherCAT Slave Controller | EtherCAT Slave Controller |
| Protocol | - | Ethernet |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 121-BGA (9x9) |
| Type | Interface | Interface |
| Utilized IC / Part | TMC8462 | TMC8462 |
| Voltage - Supply | - | 3.45 - 34 V |
| Voltage - Supply | - | 3.15 - 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TMC8462 Series
IC ETHERNET CNTRLR SPI 121BGA
| Part | Package / Case | Protocol | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Interface | Function | Supplier Device Package | Primary Attributes | Supplied Contents | Utilized IC / Part | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC8462-BA | 121-LFBGA | Ethernet | 3.45 V, 34 VDC | 3.15 V, 4.75 V | -40 °C | 125 ¯C | SPI | Controller | 121-BGA (9x9) | ||||
Analog Devices Inc./Maxim Integrated TMC8462-EVAL | Ethernet | EtherCAT Slave Controller | Board(s) | TMC8462 | Interface |
Description
General part information
TMC8462 Series
TMC8462 Ethernet Interface Evaluation Board
Documents
Technical documentation and resources
No documents available
