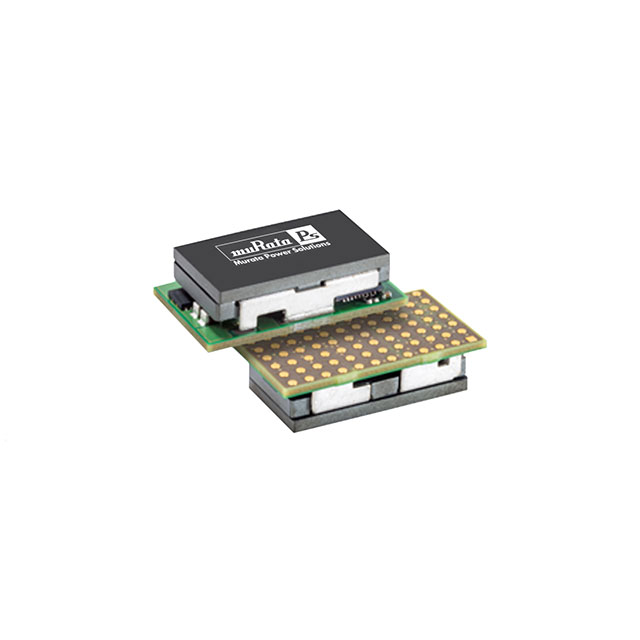

OKDL-T/60-W12-001-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 0.6-1.8V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OKDL-T/60-W12-001-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 0.6-1.8V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OKDL-T/60-W12-001-C | OKDL-T Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable |
| Current - Output (Max) [Max] | 60 A | 6 - 60 A |
| Efficiency | 92 % | 90.5 - 95.8 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP | OTP, Remote On/Off, OVP, UVLO, OCP, SCP |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 150 °C | 120 - 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | - | 32-BLGA Module |
| Size / Dimension [x] | 0.99 in | 0.48 - 0.99 in |
| Size / Dimension [x] | 25.1 mm | 12.2 - 25.1 mm |
| Size / Dimension [y] | 14.1 mm | 12.2 - 14.1 mm |
| Size / Dimension [y] | 0.56 in | 0.48 - 0.56 in |
| Size / Dimension [z] | 7 mm | 7 - 8 mm |
| Size / Dimension [z] | 0.28 " | 0.28 - 0.32 " |
| Type | Non-Isolated PoL Module, Digital | Non-Isolated PoL Module, Digital |
| Voltage - Input (Max) [Max] | 14 V | 14 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output 1 [Max] | 1.8 V | 1.8 - 5 V |
| Voltage - Output 1 [Min] | 0.6 V | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
OKDL-T Series
DC DC CONVERTER 0.6-5V
| Part | Type | Current - Output (Max) [Max] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Control Features | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Features | Voltage - Input (Min) [Min] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Efficiency | Number of Outputs | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. OKDL-T/6-W12-001-C | Non-Isolated PoL Module, Digital | 6 A | 5 V | 0.6 V | Active High, Enable | 14 V | 8 mm | 0.32 " | 12.2 mm | 0.48 in | 0.48 in | 12.2 mm | OCP, OTP, OVP, Remote On/Off, UVLO | 4.5 V | ITE (Commercial) | -40 °C | 120 °C | 32-BLGA Module | 95.6 % | 1 | Surface Mount |
Murata Power Solutions Inc. OKDL-T/18-W12-001-C | Non-Isolated PoL Module, Digital | 18 A | 1.8 V | 0.6 V | Active High, Enable | 14 V | 8 mm | 0.32 " | 12.2 mm | 0.48 in | 0.48 in | 12.2 mm | OCP, OTP, OVP, Remote On/Off, UVLO | 4.5 V | ITE (Commercial) | -40 °C | 120 °C | 32-BLGA Module | 90.5 % | 1 | Surface Mount |
Murata Power Solutions Inc. OKDL-T/60-W12-001-C | Non-Isolated PoL Module, Digital | 60 A | 1.8 V | 0.6 V | Active High, Enable | 14 V | 7 mm | 0.28 " | 25.1 mm | 0.56 in | 0.99 in | 14.1 mm | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 4.5 V | ITE (Commercial) | -40 °C | 150 °C | 92 % | 1 | Surface Mount | |
Murata Power Solutions Inc. OKDL-T/12-W12-001-C | Non-Isolated PoL Module, Digital | 12 A | 5 V | 0.6 V | Active High, Enable | 14 V | 8 mm | 0.32 " | 12.2 mm | 0.48 in | 0.48 in | 12.2 mm | OCP, OTP, OVP, Remote On/Off, UVLO | 4.5 V | ITE (Commercial) | -40 °C | 120 °C | 32-BLGA Module | 95.8 % | 1 | Surface Mount |
Description
General part information
OKDL-T Series
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 1.8V 60A 4.5V - 14V Input
