A17201LUAA-I1

Active

Allegro MicroSystems

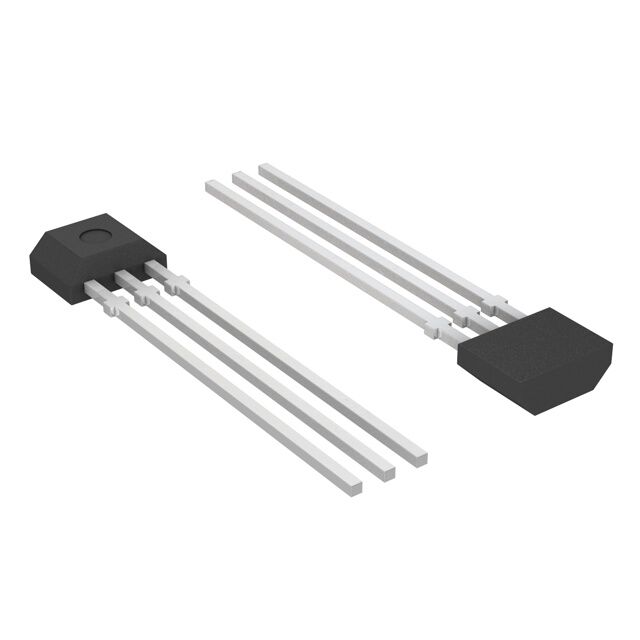

MAGNETIC SWITCH SPEC PURP 3SIP

Search across all available documentation for this part.

Active

Allegro MicroSystems

MAGNETIC SWITCH SPEC PURP 3SIP

Technical Specifications

Parameters and characteristics commom to parts in this series

MAGNETIC SWITCH SPEC PURP 3SIP

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Supply (Max) [Max]	Package / Case	Output Type	Sensing Range	Function	Test Condition [Max]	Test Condition [Min]	Supplier Device Package	Features	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Allegro MicroSystems A17201LUAA-I1	3.5 V	24 V	16 mA	3-SSIP	Current Source	-1.74 mT, 1.74 mT	Special Purpose	150 °C	-40 °C	3-SIP	Temperature Compensated	Hall Effect	-40 °C	150 °C	Through Hole
Allegro MicroSystems A17201LUBATN-I1	3.5 V	24 V	16 mA	2-SIP Module	Current Source	-1.74 mT, 1.74 mT	Special Purpose	150 °C	-40 °C	2-UltraMini SIP	Temperature Compensated	Hall Effect	-40 °C	150 °C	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	8000	$ 1.03

General part information

Digital Switch Special Purpose Current Source Hall Effect 3-SIP

Technical documentation and resources
