8D2011-Z

Obsolete

Nidec Components Corporation

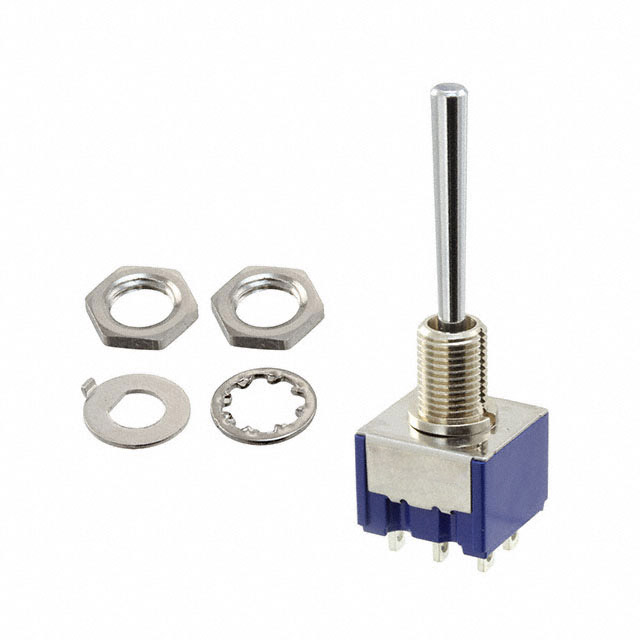

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

Nidec Components Corporation

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	8D2011-Z

Actuator Length [x]	21.3 mm
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Electrical Life	Current Rating (Amps)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Features	Actuator Type	Bushing Thread	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Switch Function	Actuator Length [x]	Voltage Rating - AC	Illumination
Nidec Components Corporation 8D2011-Z	50000 Cycles	4 A 6 A	Solder Lug	-30 ░C	85 °C	DPDT	Sealed - Flux Protection	Standard Round	1/4-40	6.5 mm	30 V	On-On	21.3 mm	125 V	Non-Illuminated
