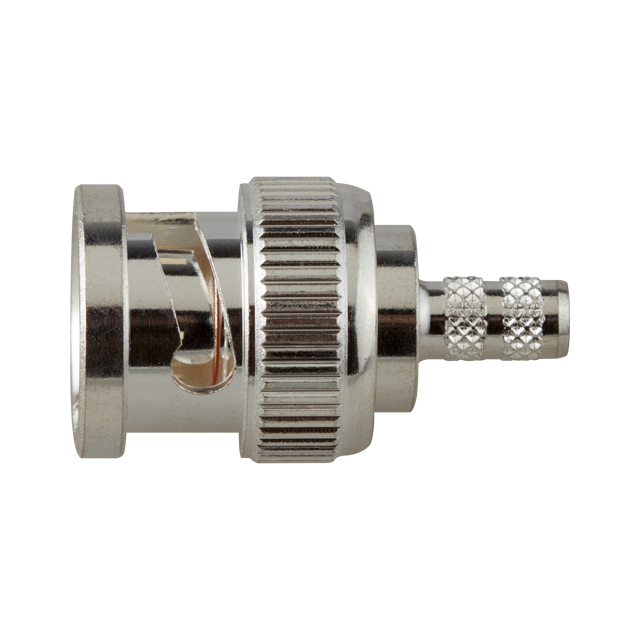

RFB-1106-2ST

Active

RF Industries

BNC MALE CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

BNC MALE CRIMP; 50 OHMS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	RFB-1106-2ST	RFB-1106 Series

Body Finish	Silver	Silver, Nickel
Body Material	Brass	Brass
Cable Group	Belden 8240, 141A, 9311, 58A, 8262, 9201, 9203, 141, 9310, 58C, RG-58	Belden 8240, 141A, 9311, 58A, 8262, 9201, 9203, 141, 9310, 58C, RG-58, Alpha 9848, LMR-200, MSI-22
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

BNC MALE CRIMP; 50 OHMS

Part	Dielectric Material	Frequency - Max [Max]	Body Finish	Housing Color	Number of Ports	Cable Group	Body Material	Center Contact Plating	Fastening Type	Connector Style	Connector Type	Center Contact Material	Shield Termination	Contact Termination	Mounting Type	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating
RF Industries RFB-1106-2ST	Polytetrafluoroethylene (PTFE)	4 GHz	Silver	Silver	1	141, 141A, 58A, 58C, 8262, 9201, 9203, 9310, 9311, Belden 8240, RG-58	Brass	Gold	Bayonet Lock	BNC	Male Pin, Plug	Brass	Crimp	Crimp	Free Hanging (In-Line)	50 Ohms	-65 ░C	85 °C	500 V
RF Industries RFB-1106-C2	Polytetrafluoroethylene (PTFE)	4 GHz	Nickel	Silver	1	Alpha 9848, LMR-200, MSI-22	Brass	Gold	Bayonet Lock	BNC	Male Pin, Plug	Brass	Crimp	Crimp	Free Hanging (In-Line)	50 Ohms	-65 ░C	85 °C	500 V
