1B104
ActiveGowanda Electronics
WW HIGH CURRENT POWER CHOKE
1B104
ActiveGowanda Electronics
WW HIGH CURRENT POWER CHOKE
Description
General part information
1B104

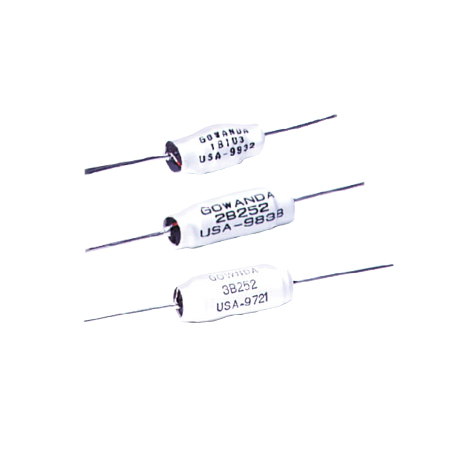

1 mH Unshielded Toroidal Inductor 1 A 600mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 1B104 |
|---|---|
| Current Rating | 1 A |
| DC Resistance (DCR) (Max) | 600 mOhm |
| Inductance | 1 mH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.575 in |
| Size / Dimension Length | 1.175 in |
| Tolerance | 10 % |
| Type | Toroidal |
