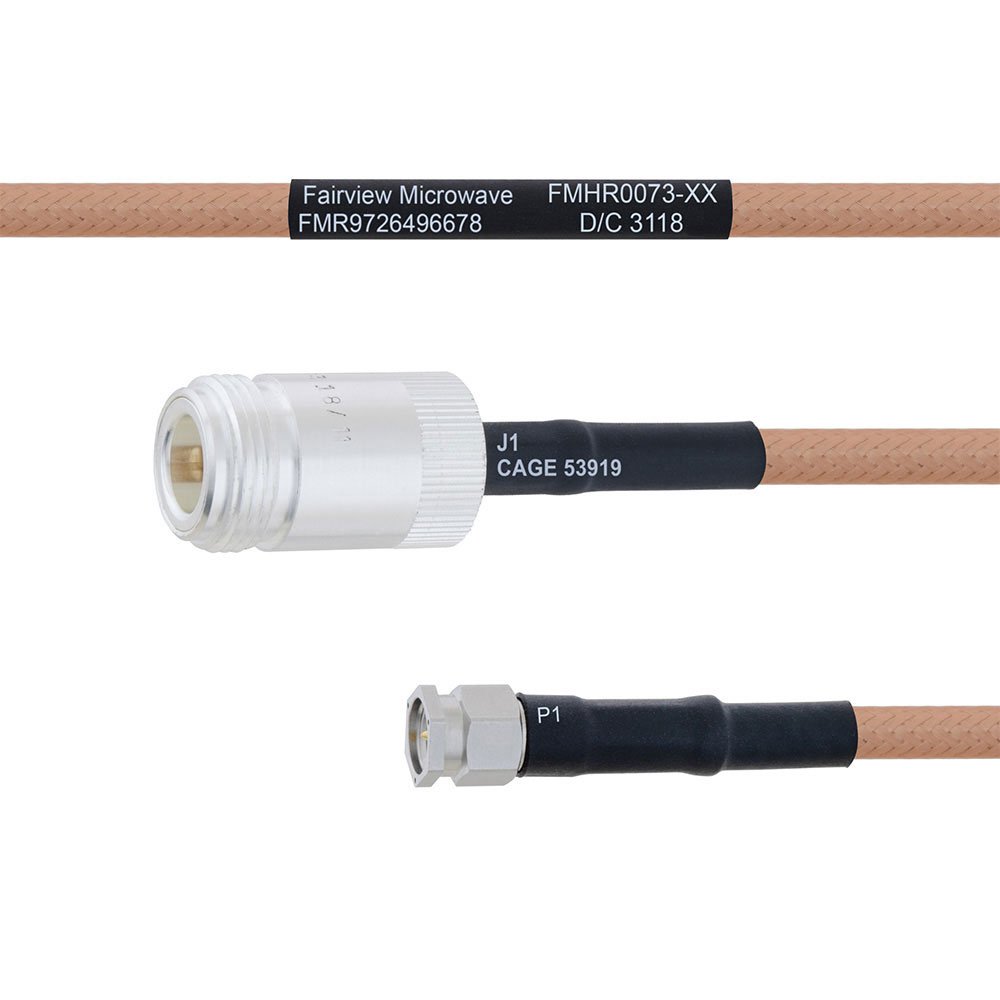

FMHR0073-24
ActiveFairview Microwave
CBL ASSY TYPE NJACK-SMAPLUG 24
FMHR0073-24
ActiveFairview Microwave
CBL ASSY TYPE NJACK-SMAPLUG 24
Description
General part information
FMHR0073-24
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0073-24 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 400 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 11 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
