AB42S

Active

Bright Toward Industrial Co., Ltd.

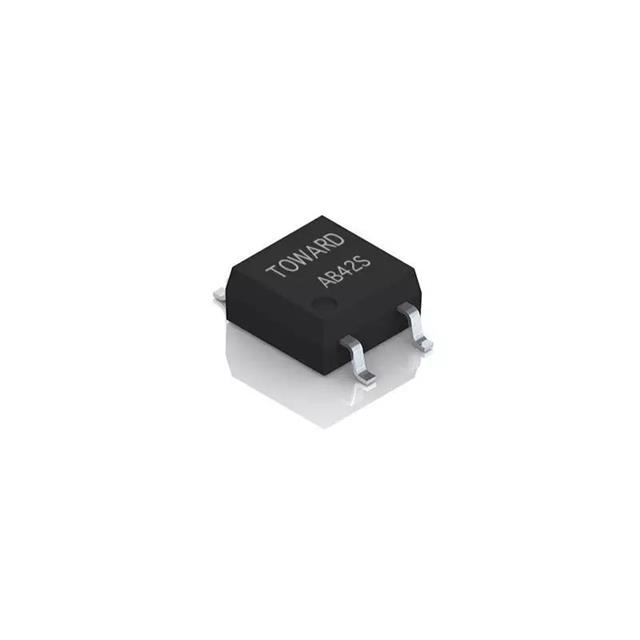

SOP-4, 60V / 2.5A, SSR RELAY SPS

Search across all available documentation for this part.

Active

Bright Toward Industrial Co., Ltd.

SOP-4, 60V / 2.5A, SSR RELAY SPS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) 4-SMD, Gull Wing

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AB42S	- Series

Circuit	-	SPST-NO (1 Form A) x 2, DPST-NO (2 Form A)
Grade	-	Automotive
Load Current	2.5 A	1 - 900 mA
Mounting Type	Surface Mount	Through Hole, Surface Mount
On-State Resistance (Max)	-	160 mOhms
On-State Resistance (Max) [Max]	64 mOhms	1 - 300 Ohms
Output Type	DC, AC	DC, AC, AC, Zero Cross
Package / Case	4-SMD, Gull Wing	4-DIP (0.300", 7.62mm), 4-SMD, Gull Wing, 6-DIP, 6-SMD, 4-SOP, 8-DIP, 4-SIP, 8-SMD, 8-SOP
Package / Case	-	0.3 in
Package / Case	-	0.173 - 7.62 mm
Package / Case	-	4.4 - 7.62 mm
Package / Case	-	4.4 mm
Package / Case	-	0.173 in
Qualification	-	AEC-Q101
Supplier Device Package	4-SOP	4-DIP, 4-SOP, 6-DIP, 8-SMD, 6-SMD, 8-DIP, 4-SIP, 8-SOP
Termination Style	Gull Wing	PC Pin, Gull Wing
Voltage - Input	1.37 VDC	1.17 - 1.37 VDC
Voltage - Input	-	1.5 VDC
Voltage - Input	-	1 V
Voltage - Load [Max]	60 V	60 - 1700 V
Voltage - Load [Min]	0 V	0 V

SSR RELAY SPST-NO 550MA 0-60V

Part	Voltage - Input	Package / Case	Supplier Device Package	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	On-State Resistance (Max) [Max]	Load Current	Output Type	Package / Case	Package / Case	Circuit	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case
Bright Toward Industrial Co., Ltd. AB37	1.17 VDC	4-DIP (0.300", 7.62mm)	4-DIP	PC Pin	0 V	60 V	Through Hole	1.6 Ohms	550 mA	AC, DC
Bright Toward Industrial Co., Ltd. AB26S	1.37 VDC	4-SMD, Gull Wing	4-SOP	Gull Wing			Surface Mount	43 mOhms	3.5 A	AC, DC
Bright Toward Industrial Co., Ltd. AA52	1.33 VDC	6-DIP	6-DIP	PC Pin	0 V	1700 V	Through Hole		350 mA	AC, DC	0.3 in	7.62 mm
Bright Toward Industrial Co., Ltd. AC30F			8-SMD				Surface Mount	30 Ohm	100 mA	DC			SPST-NO (1 Form A) x 2	1.5 VDC	1 V
Bright Toward Industrial Co., Ltd. AA36F	1.37 VDC	6-SMD	6-SMD	Gull Wing	0 V	60 V	Surface Mount	100 mOhms	2.5 A	AC, DC		0.3 in				7.62 mm
Bright Toward Industrial Co., Ltd. AA38	1.17 VDC	6-DIP	6-DIP	PC Pin	0 V	600 V	Through Hole	60 Ohm	80 mA	AC, DC	0.3 in	7.62 mm
Bright Toward Industrial Co., Ltd. AB30S	1.17 VDC	4-SOP	4-SOP	Gull Wing			Surface Mount	24 Ohm	100 mA	AC, DC		0.173 in				4.4 mm
Bright Toward Industrial Co., Ltd. AA28	1.37 VDC	6-SMD	6-SMD	Gull Wing			Surface Mount	30 mOhms	4.5 A	AC, DC		0.3 in				7.62 mm
Bright Toward Industrial Co., Ltd. AA58F	1.33 VDC	6-SMD	6-SMD	Gull Wing	0 V	1700 V	Surface Mount	180 Ohms	30 mA	AC, DC		0.3 in				7.62 mm
Bright Toward Industrial Co., Ltd. AA36	1.37 VDC	6-DIP	6-DIP	PC Pin	0 V	60 V	Through Hole	100 mOhms	2.5 A	AC, DC	0.3 in	7.62 mm
