ANT025020LCT1575MA1
ObsoleteTDK Corporation
RF ANT 1.575GHZ/2.4GHZ CHIP SLD
ANT025020LCT1575MA1
ObsoleteTDK Corporation
RF ANT 1.575GHZ/2.4GHZ CHIP SLD
Description
General part information

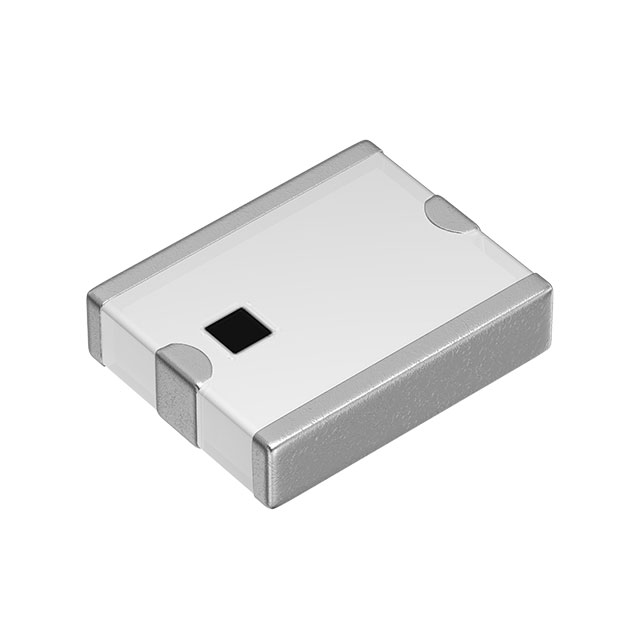

ANT025020LCT1575MA1
RF ANTENNA Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT025020LCT1575MA1 |
|---|---|
| Antenna Type | Chip |
| Frequency (Center/Band) | 2.4GHz, 1.575GHz, 5.5GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 1.577 GHz |
| Frequency Range (Band 1) Minimum | 1.574 GHz |
| Frequency Range (Band 2) Maximum | 2.484 GHz |
| Frequency Range (Band 2) Minimum | 2.4 GHz |
| Frequency Range (Band 3) Maximum | 5.85 GHz |
| Frequency Range (Band 3) Minimum | 5.15 GHz |
| Height (Max) | 0.024 in |
| Mounting Type | Surface Mount |
| Number of Bands | 3 |
| Termination | Solder |
| VSWR | 1.3, 1.8, 2.4 |
