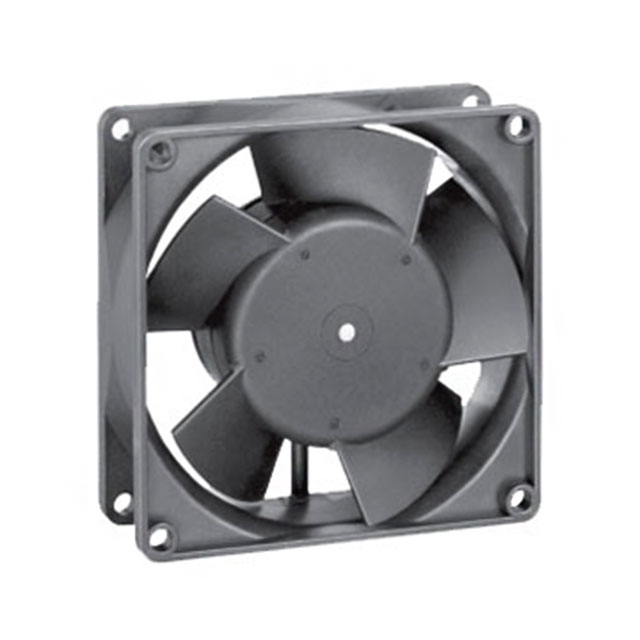

3314NNU
Activeebm-papst Inc.
DC FAN AXIAL BALL BEARING 24V 18V TO 28V 47.1CFM 35DB 92 X 92 X 32MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3314NNU
Activeebm-papst Inc.
DC FAN AXIAL BALL BEARING 24V 18V TO 28V 47.1CFM 35DB 92 X 92 X 32MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3314NNU |
|---|---|
| Air Flow | 46.9 CFM |
| Air Flow | 1.31 mł/min |
| Approval Agency | UL |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lifetime @ Temp. | 65000 Hrs |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 35 dB |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Max] | 75 °C |
| Operating Temperature [Min] | -20 C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 1.8 W |
| RPM | 2650 RPM |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 18 VDC |
| Weight | 0.419 lb |
| Weight | 190.06 g |
| Width [y] | 32 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 62.61 | |
| 10 | $ 56.65 | |||
| 36 | $ 52.92 | |||
| 72 | $ 52.18 | |||
| 108 | $ 48.08 | |||
Description
General part information
3314NNU
Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 46.9 CFM (1.31mł/min) 2 Wire Leads
