0446173551
ActiveFair-Rite Products Corp.
46 ROUND CABLE CORE ASSEMBLY
0446173551
ActiveFair-Rite Products Corp.
46 ROUND CABLE CORE ASSEMBLY
Description
General part information
0446173551

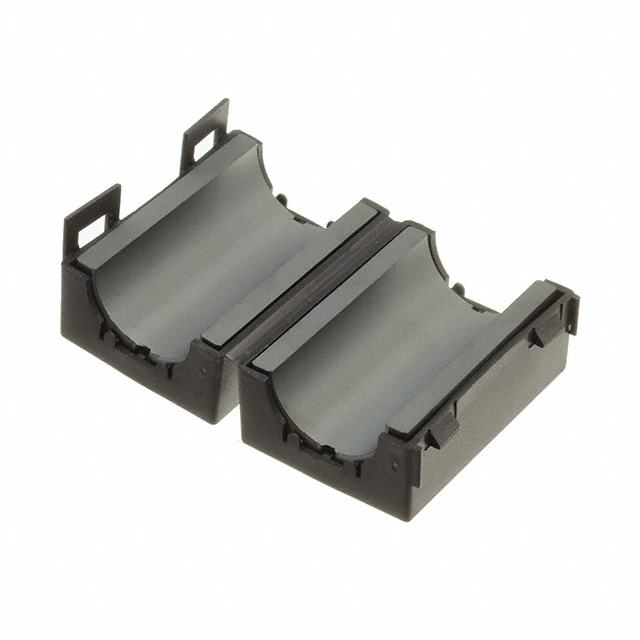

Hinged (Snap On) Free Hanging Ferrite Core 176Ohm @ 100MHz ID 0.740" Dia (18.80mm) OD 1.150" W x 0.579" H (29.21mm x 14.71mm) Length 1.650" (41.91mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0446173551 |
|---|---|
| Design | Hinged (Snap On) |
| Impedance | 176 Ohm |
| Inner Dimension (Diameter) | 0.74 in |
| Length | 1.65 in |
| Material | 46 |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.579 in |
| Outer Dimension Width | 1.15 in |
| Type | Round |
