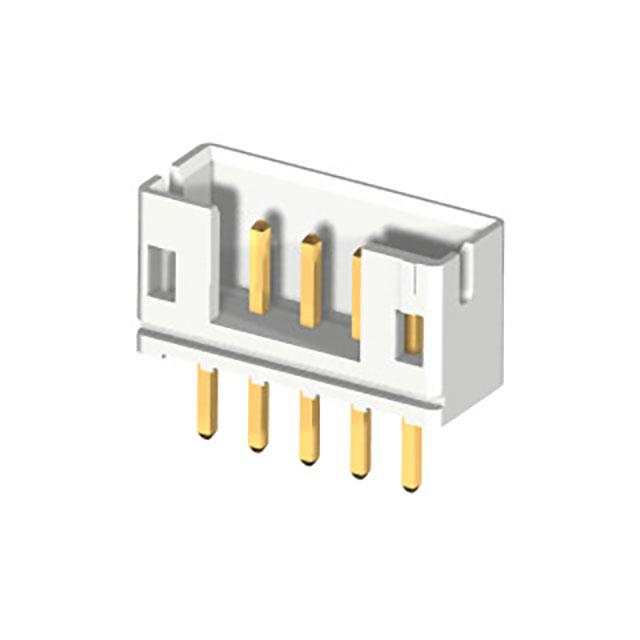

CI0104P1VK0-NH

Active

Cvilux USA

4 POS 2.00MM(.079) SINGLE ROW ST

Search across all available documentation for this part.

Active

Cvilux USA

4 POS 2.00MM(.079) SINGLE ROW ST

Technical Specifications

Parameters and characteristics for this part

Specification	CI0104P1VK0-NH

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	120 µin
Contact Finish Thickness - Mating	3.05 Ám
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VAC

4 POS 2.00MM(.079) SINGLE ROW ST

Part	Insulation Material	Contact Finish - Post	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Color	Contact Type	Fastening Type	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Current Rating (Amps)	Termination	Voltage Rating	Style	Contact Material	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Mounting Type
Cvilux USA CI0104P1VK0-NH	Polyamide (PA66), Nylon 6/6	Tin	Header	120 µin	3.05 Ám	UL94 V-0	Natural	Male Pin	Detent Lock	Shrouded - 4 Wall	-25 °C	105 ░C	1	4	0.134 in	3.4 mm	0.24 in	6.1 mm	2 A	Kinked Pin, Solder	250 VAC	Board to Cable/Wire	Brass	Square	0.079 in	2 mm	All	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.079" (2.00mm)
