Description
General part information

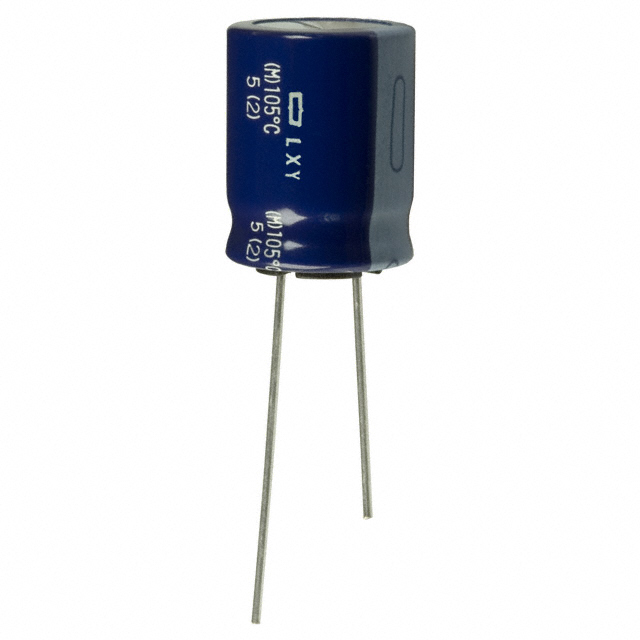

LXY25VB152M16X20LL
1500 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LXY25VB152M16X20LL |
|---|---|
| Applications | General Purpose |
| Capacitance | 1500 µF |
| Height - Seated (Max) | 0.787 in |
| Impedance | 38 mOhms |
| Lead Spacing | 0.295 in |
| Lifetime | 8000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 1.63 A, 978 mA |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
