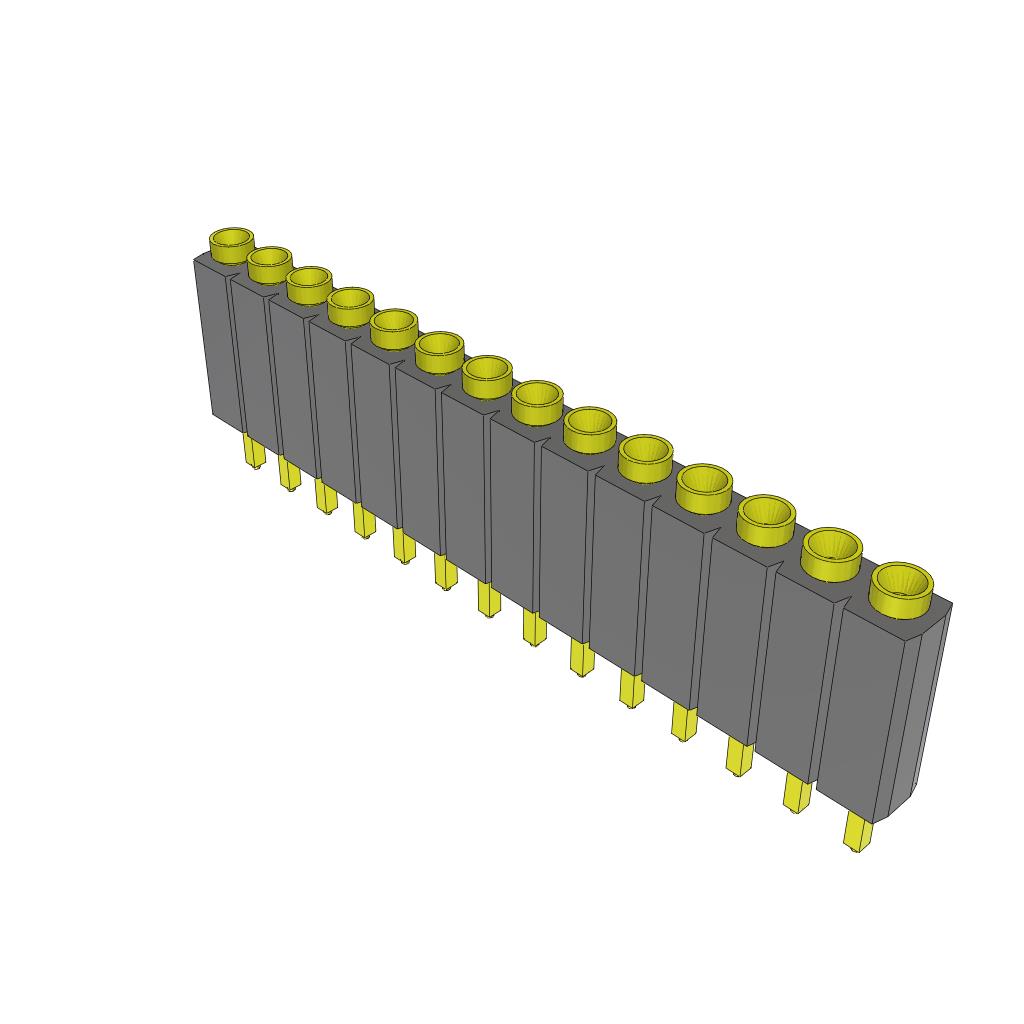

ESS-114-G-23

Active

Samtec Inc.

CONN SOCKET STRIP SKT 14 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsESS Datasheet Datasheet

ESS-114-G-23

Active

Samtec Inc.

CONN SOCKET STRIP SKT 14 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsESS Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESS-114-G-23

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post [x]	3.12 mm
Contact Length - Post [x]	0.123 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.3 in
Insulation Height [z]	7.62 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

ESS-113 Series

IC & Component Sockets .100" Elevated Single Row Screw Machine Socket Strip

...

Part	Fastening Type	Termination	Contact Finish - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Rows	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Color	Insulation Height	Insulation Height	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ESS-104-G-07	Push-Pull	Solder	Gold	Through Hole	0.1 in	2.54 mm	UL94 V-0	10 çin	0.25 çm	Gold	1	Circular	10 çin	0.25 çm	Beryllium Copper	Liquid Crystal Polymer (LCP)	All	0.265 in	6.73 mm	Female Socket	Black	0.4 in	10.16 mm	Elevated Socket	4	-55 °C	125 °C
Samtec Inc. ESS-129-T-03	Push-Pull	Solder	Tin	Through Hole	0.1 in	2.54 mm	UL94 V-0	10 çin	0.25 çm	Gold	1	Circular			Beryllium Copper	Liquid Crystal Polymer (LCP)	All			Female Socket	Black			Elevated Socket	29	-55 °C	125 °C	0.3 in	7.62 mm	3.12 mm	0.123 in
Samtec Inc. ESS-114-G-08	Push-Pull	Solder	Gold	Through Hole	0.1 in	2.54 mm	UL94 V-0	10 çin	0.25 çm	Gold	1	Circular	10 çin	0.25 çm	Beryllium Copper	Liquid Crystal Polymer (LCP)	All	0.365 in	9.27 mm	Female Socket	Black			Elevated Socket	14	-55 °C	125 °C	0.3 in	7.62 mm
Samtec Inc. ESS-113-G-05	Push-Pull	Solder	Gold	Through Hole	0.1 in	2.54 mm	UL94 V-0	10 çin	0.25 çm	Gold	1	Circular	10 çin	0.25 çm	Beryllium Copper	Liquid Crystal Polymer (LCP)	All	0.173 in	4.4 mm	Female Socket	Black	0.5 in	12.7 mm	Elevated Socket	13	-55 °C	125 °C
Samtec Inc. ESS-104-T-28	Push-Pull	Solder	Tin	Through Hole	0.1 in	2.54 mm	UL94 V-0	10 çin	0.25 çm	Gold	1	Circular			Beryllium Copper	Liquid Crystal Polymer (LCP)	All	0.373 in	9.47 mm	Female Socket	Black			Elevated Socket	4	-55 °C	125 °C	0.3 in	7.62 mm
Samtec Inc. ESS-103-T-08	Push-Pull	Solder	Tin	Through Hole	0.1 in	2.54 mm	UL94 V-0	10 çin	0.25 çm	Gold	1	Circular			Beryllium Copper	Liquid Crystal Polymer (LCP)	All	0.365 in	9.27 mm	Female Socket	Black			Elevated Socket		-55 °C	125 °C	0.3 in	7.62 mm
Samtec Inc. ESS-120-TT-06	Push-Pull	Solder	Tin	Through Hole	0.1 in	2.54 mm	UL94 V-0				1	Circular			Beryllium Copper	Liquid Crystal Polymer (LCP)	All	0.215 in	5.46 mm	Female Socket	Black			Elevated Socket	20	-55 °C	125 °C	0.3 in	7.62 mm
Samtec Inc. ESS-128-T-04	Push-Pull	Solder	Tin	Through Hole	0.1 in	2.54 mm	UL94 V-0	10 çin	0.25 çm	Gold	1	Circular			Beryllium Copper	Liquid Crystal Polymer (LCP)	All			Female Socket	Black	0.4 in	10.16 mm	Elevated Socket	28	-55 °C	125 °C			3.12 mm	0.123 in
Samtec Inc. ESS-114-G-23	Push-Pull	Solder	Gold	Through Hole	0.1 in	2.54 mm	UL94 V-0	10 çin	0.25 çm	Gold	1	Circular	10 çin	0.25 çm	Beryllium Copper	Liquid Crystal Polymer (LCP)	All			Female Socket	Black			Elevated Socket	14	-55 °C	125 °C	0.3 in	7.62 mm	3.12 mm	0.123 in
Samtec Inc. ESS-113-T-05	Push-Pull	Solder	Tin	Through Hole	0.1 in	2.54 mm	UL94 V-0	10 çin	0.25 çm	Gold	1	Circular			Beryllium Copper	Liquid Crystal Polymer (LCP)	All	0.173 in	4.4 mm	Female Socket	Black	0.5 in	12.7 mm	Elevated Socket	13	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.28

Description

General part information

ESS-113 Series

IC & Component Sockets .100" Elevated Single Row Screw Machine Socket Strip

Documents

Technical documentation and resources

ESS Datasheet

Datasheet
