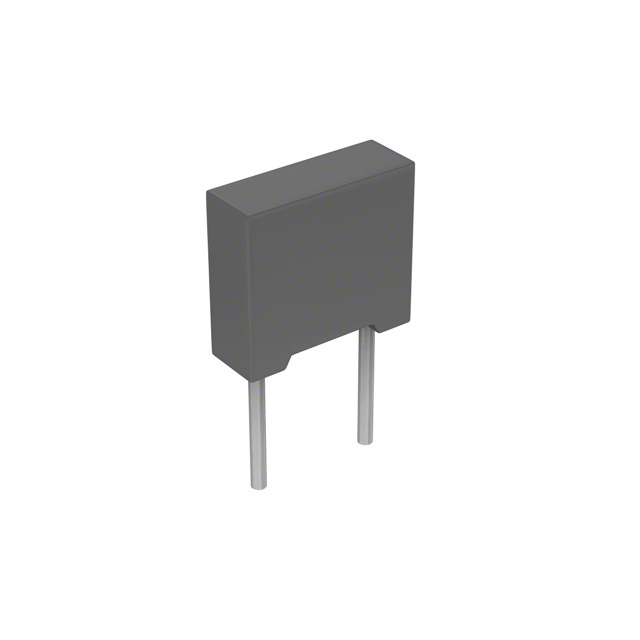

185102K400RAB-F
ActiveCornell Dubilier Knowles
CAP FILM 1000PF 10% 400VDC RAD
185102K400RAB-F
ActiveCornell Dubilier Knowles
CAP FILM 1000PF 10% 400VDC RAD
Description
General part information
185102K400RAB-F
1000 pF Film Capacitor 200V 400V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 185102K400RAB-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 pF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.256 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.098 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 200 Vpk |
| Voltage Rating - DC | 400 V |
