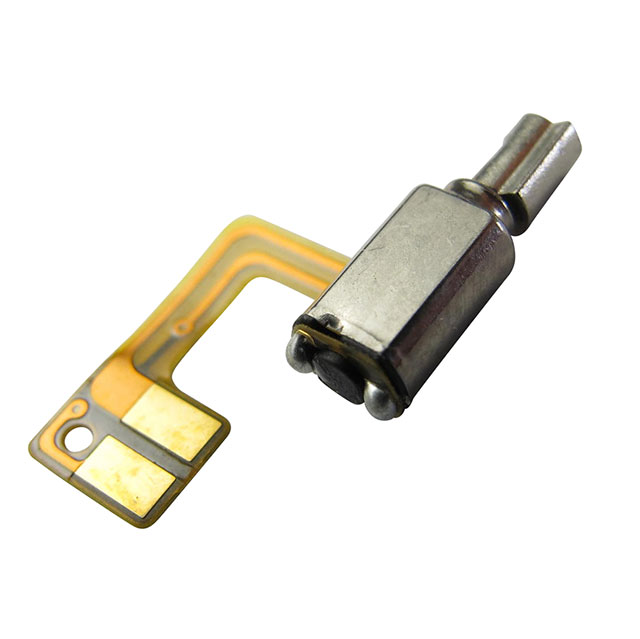

VZ30F4B8196813L
ObsoleteVybronics Inc
VIBRATION MOTOR 13K RPM 0.4G
Deep-Dive with AI
Search across all available documentation for this part.
VZ30F4B8196813L
ObsoleteVybronics Inc
VIBRATION MOTOR 13K RPM 0.4G
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VZ30F4B8196813L |
|---|---|
| Function | ERM, Vibration |
| Length - Shaft and Bearing [x] | 4.6 mm |
| Length - Shaft and Bearing [x] | 0.181 in |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| RPM | 13000 RPM |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Termination Style | Solder Tab |
| Type | DC Motor |
| Voltage - Rated | 2.7 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.63 | |
| 5 | $ 2.49 | |||
| 10 | $ 2.42 | |||
| 25 | $ 2.35 | |||
| 50 | $ 2.14 | |||
| 100 | $ 1.94 | |||
| 300 | $ 1.87 | |||
| 500 | $ 1.84 | |||
Description
General part information
Z30F4B8196813 Series
DC Motor Vibration, ERM 13000 RPM 2.7VDC
