HGG.2B.310.CLLP
ActiveLEMO

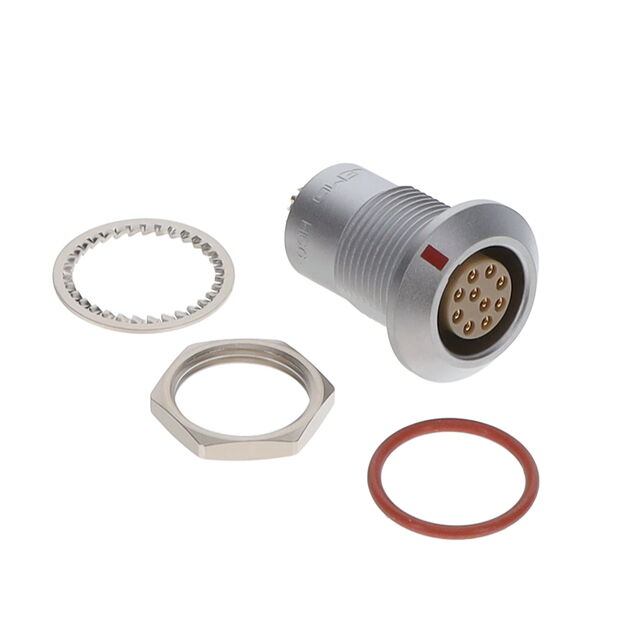

CONN RCPT FMALE 10P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HGG.2B.310.CLLP
ActiveLEMO
CONN RCPT FMALE 10P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HGG.2B.310.CLLP | HGG.2B Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 8 A | 1.5 - 25 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Potted | Vacuumtight, Potted |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions | 10 | 2 - 26 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 310 | 302 - 332 |
| Shielding | Shielded | Shielded |
HGG.2B Series
CONN RCPT FMALE 2P GOLD SLDR CUP
| Part | Insert Material | Material Flammability Rating | Shell Material | Shielding | Number of Positions | Orientation | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Connector Type | Shell Finish | Primary Material | Current Rating (Amps) | Mounting Feature | Color | Ingress Protection | Contact Material | Fastening Type | Shell Size - Insert | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO HGG.2B.302.CLLPV | Polyetheretherketone (PEEK) | UL94 V-0 | Brass | Shielded | 2 | G | 59 Áin | 1.5 Ám | Potted, Vacuumtight | Receptacle, Female Sockets | Chrome | Metal | 25 A | Bulkhead - Rear Side Nut | Silver | IP68 - Dust Tight, Waterproof | Bronze | Push-Pull | 302 | Gold | -20 C | 80 C | |
LEMO HGG.2B.316.CLLPV | Polyetheretherketone (PEEK) | UL94 V-0 | Brass | Shielded | G | 59 Áin | 1.5 Ám | Potted, Vacuumtight | Receptacle, Female Sockets | Chrome | Metal | 6 A | Bulkhead - Rear Side Nut | Silver | IP68 - Dust Tight, Waterproof | Bronze | Push-Pull | 316 | Gold | -20 C | 80 C | 16 | |
LEMO HGG.2B.310.CLLPV | Polyetheretherketone (PEEK) | UL94 V-0 | Brass | Shielded | 10 | G | 59 Áin | 1.5 Ám | Potted, Vacuumtight | Receptacle, Female Sockets | Chrome | Metal | 8 A | Bulkhead - Rear Side Nut | Silver | IP68 - Dust Tight, Waterproof | Bronze | Push-Pull | 310 | Gold | -20 C | 80 C | |
LEMO HGG.2B.326.CLLPV | Polyetheretherketone (PEEK) | UL94 V-0 | Brass | Shielded | 26 | G | 59 Áin | 1.5 Ám | Potted, Vacuumtight | Receptacle, Female Sockets | Chrome | Metal | 2 A | Bulkhead - Rear Side Nut | Silver | IP68 - Dust Tight, Waterproof | Bronze | Push-Pull | 326 | Gold | -20 C | 80 C | |
LEMO HGG.2B.314.CLLP | Polyetheretherketone (PEEK) | UL94 V-0 | Brass | Shielded | 14 | G | 59 Áin | 1.5 Ám | Potted | Receptacle, Female Sockets | Chrome | Metal | 6.5 A | Bulkhead - Rear Side Nut | Silver | IP68 - Dust Tight, Waterproof | Bronze | Push-Pull | 314 | Gold | -20 C | 80 C | |
LEMO HGG.2B.319.CLLPV | Polyetheretherketone (PEEK) | UL94 V-0 | Brass | Shielded | 19 | G | 59 Áin | 1.5 Ám | Potted, Vacuumtight | Receptacle, Female Sockets | Chrome | Metal | 5 A | Bulkhead - Rear Side Nut | Silver | IP68 - Dust Tight, Waterproof | Bronze | Push-Pull | 319 | Gold | -20 C | 80 C | |
LEMO HGG.2B.306.CLLP | Polyetheretherketone (PEEK) | UL94 V-0 | Brass | Shielded | 6 | G | 59 Áin | 1.5 Ám | Potted | Receptacle, Female Sockets | Chrome | Metal | 12 A | Bulkhead - Rear Side Nut | Silver | IP68 - Dust Tight, Waterproof | Bronze | Push-Pull | 306 | Gold | -20 C | 80 C | |
LEMO HGG.2B.332.CLLPV | Polyetheretherketone (PEEK) | UL94 V-0 | Brass | Shielded | G | 59 Áin | 1.5 Ám | Potted, Vacuumtight | Receptacle, Female Sockets | Chrome | Metal | 1.5 A | Bulkhead - Rear Side Nut | Silver | IP68 - Dust Tight, Waterproof | Bronze | Push-Pull | 332 | Gold | -20 C | 80 C | ||
LEMO HGG.2B.305.CLLP | Polyetheretherketone (PEEK) | UL94 V-0 | Brass | Shielded | G | 59 Áin | 1.5 Ám | Potted | Receptacle, Female Sockets | Chrome | Metal | 14 A | Bulkhead - Rear Side Nut | Silver | IP68 - Dust Tight, Waterproof | Bronze | Push-Pull | 305 | Gold | -20 C | 80 C | ||
LEMO HGG.2B.306.CLLPV | Polyetheretherketone (PEEK) | UL94 V-0 | Brass | Shielded | 6 | G | 59 Áin | 1.5 Ám | Potted, Vacuumtight | Receptacle, Female Sockets | Chrome | Metal | 12 A | Bulkhead - Rear Side Nut | Silver | IP68 - Dust Tight, Waterproof | Bronze | Push-Pull | 306 | Gold | -20 C | 80 C |
