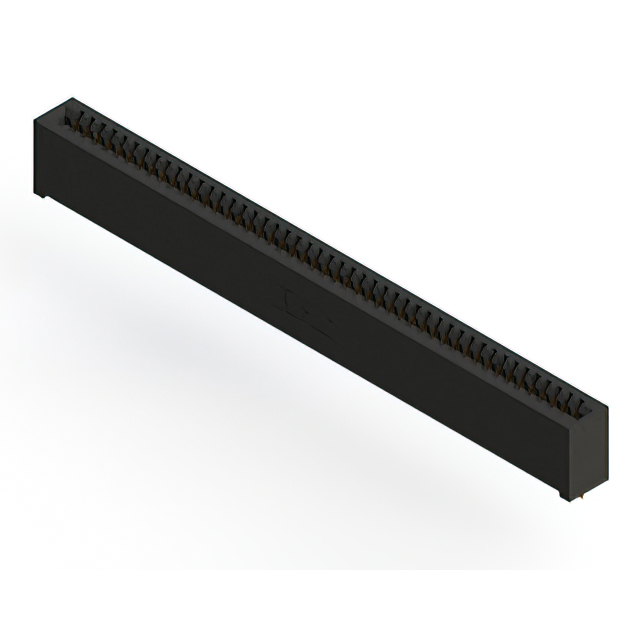

392-047-520-101
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-047-520-101
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-047-520-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 47 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
392-047 Series
| Part | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Mounting Type | Read Out | Contact Material | Termination | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Pitch [x] | Pitch [x] | Termination Rows | Contact Type | Color | Gender | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Single | Copper Alloy | Wire Wrap | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1 | Cantilever | Black | Female | 47 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Gold |
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Single | Copper Alloy | Solder | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1 | Cantilever | Black | Female | 47 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | ||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Single | Copper Alloy | Wire Wrap | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1 | Cantilever | Black | Female | 47 | Gold | |||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Single | Copper Alloy | Solder | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1 | Cantilever | Black | Female | 47 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold |
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Single | Copper Alloy | Solder | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1 | Cantilever | Black | Female | 47 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold |
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Single | Copper Alloy | Solder | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1 | Cantilever | Black | Female | 47 | Gold | |||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Single | Copper Alloy | Solder | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1 | Cantilever | Black | Female | 47 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Gold |
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Single | Copper Alloy | Solder | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1 | Cantilever | Black | Female | 47 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold |
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Single | Copper Alloy | Wire Wrap | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1 | Cantilever | Black | Female | 47 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold |
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Through Hole | Single | Copper Alloy | Wire Wrap | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1 | Cantilever | Black | Female | 47 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
392-047 Series
47 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
