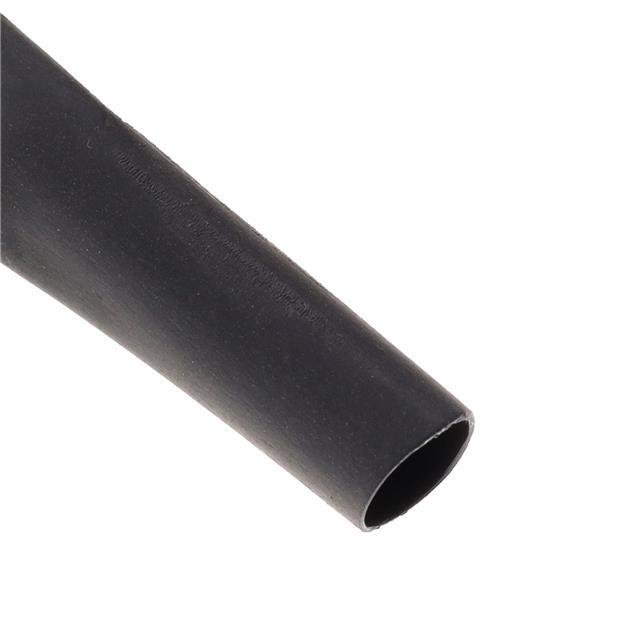

W3B2S 1/4 BLACK SPL
ActiveSumitomo Electric Interconnect Products, Inc.
HEATSHRINK 1/4" BLACK FOOT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W3B2S 1/4 BLACK SPL
ActiveSumitomo Electric Interconnect Products, Inc.
HEATSHRINK 1/4" BLACK FOOT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | W3B2S 1/4 BLACK SPL | W3B2S Series |
|---|---|---|
| Color | Black | Black |
| Features | Adhesive Lined, Flame Retardant | Adhesive Lined, Flame Retardant |
| Inner Diameter - Recovered | 0.079 in | 0.079 - 0.512 in |
| Inner Diameter - Recovered | 2.01 mm | 2.01 - 13 mm |
| Inner Diameter - Recovered | - | 1.02 - 8.13 mm |
| Inner Diameter - Recovered | - | 0.04 - 0.32 in |
| Inner Diameter - Supplied | - | 40.01 mm |
| Inner Diameter - Supplied [diameter] | 0.252 " | 0.125 - 0.94 in |
| Inner Diameter - Supplied [diameter] | 6.4 mm | 1.575 - 23.88 mm |
| Length | Enter Number of Feet in Order Quantity | Enter Number of Feet in Order Quantity |
| Material | Polyolefin (PO) | Polyolefin (PO) |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Recovered Wall Thickness | 0.047 " | 0.037 - 0.1 in |
| Recovered Wall Thickness | 1.19 mm | 0.043 - 2.54 mm |
| Recovered Wall Thickness | - | 1.09 mm |
| Shrink Temperature | 110 °C | 110 °C |
| Shrinkage Ratio [Max] | 3 | 3 |
| Shrinkage Ratio [Min] | 1 | 1 |
| Spool Size | 1000 ft | 300 - 3500 ' |
| Spool Size | 304.8 m | 91.4 - 1066.8 m |
| Type | Tubing, Flexible | Tubing, Flexible |
W3B2S Series
SUMITUBE W3B2S-HEAT-SHRINKA FEET
| Part | Inner Diameter - Recovered | Inner Diameter - Recovered | Color | Material | Features | Shrinkage Ratio [Min] | Shrinkage Ratio [Max] | Recovered Wall Thickness | Recovered Wall Thickness | Type | Spool Size | Spool Size | Operating Temperature [Min] | Operating Temperature [Max] | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Length | Shrink Temperature | Recovered Wall Thickness | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Inner Diameter - Supplied [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sumitomo Electric Interconnect Products, Inc. W3B2S 3/8 BLACK SPL | 3 mm | 0.118 in | Black | Polyolefin (PO) | Adhesive Lined, Flame Retardant | 1 | 3 | 0.051 in | 1.3 mm | Tubing, Flexible | 500 ' | 152.4 m | -55 °C | 125 °C | 0.374 in | 9.5 mm | Enter Number of Feet in Order Quantity | 110 °C | ||||
Sumitomo Electric Interconnect Products, Inc. W3B2S 3/16 BLACK SPL | Black | Polyolefin (PO) | Adhesive Lined, Flame Retardant | 1 | 3 | 0.043 in | Tubing, Flexible | 2000 ' | 609.6 m | -55 °C | 125 °C | 0.189 in | 4.8 mm | Enter Number of Feet in Order Quantity | 110 °C | 1.09 mm | ||||||
Sumitomo Electric Interconnect Products, Inc. W3B2S 1/2 BLACK SPL | Black | Polyolefin (PO) | Adhesive Lined, Flame Retardant | 1 | 3 | 0.055 in | 1.4 mm | Tubing, Flexible | 500 ' | 152.4 m | -55 °C | 125 °C | 0.5 in | 12.7 mm | Enter Number of Feet in Order Quantity | 110 °C | 3.99 mm | 0.157 in | ||||
Sumitomo Electric Interconnect Products, Inc. W3B2S 3/4 BLACK SPL | 5.99 mm | 0.236 in | Black | Polyolefin (PO) | Adhesive Lined, Flame Retardant | 1 | 3 | 0.071 " | 1.8 mm | Tubing, Flexible | 400 ft | 121.9 m | -55 °C | 125 °C | 0.748 in | 19 mm | Enter Number of Feet in Order Quantity | 110 °C | ||||
Sumitomo Electric Interconnect Products, Inc. W3B2S 1/4 BLACK SPL | 2.01 mm | 0.079 in | Black | Polyolefin (PO) | Adhesive Lined, Flame Retardant | 1 | 3 | 0.047 " | 1.19 mm | Tubing, Flexible | 1000 ft | 304.8 m | -55 °C | 125 °C | 0.252 " | 6.4 mm | Enter Number of Feet in Order Quantity | 110 °C | ||||
Sumitomo Electric Interconnect Products, Inc. W3B2S 40/13 BLACK SPL | 13 mm | 0.512 in | Black | Polyolefin (PO) | Adhesive Lined, Flame Retardant | 1 | 3 | 0.098 in | 2.49 mm | Tubing, Flexible | 400 ft | 121.9 m | -55 °C | 125 °C | 1.575 " | Enter Number of Feet in Order Quantity | 110 °C | 40.01 mm | ||||
Sumitomo Electric Interconnect Products, Inc. W3B2S 1/8 BLACK SPL | Black | Polyolefin (PO) | Adhesive Lined, Flame Retardant | 1 | 3 | 0.037 in | 0.94 mm | Tubing, Flexible | 3500 ft | 1066.8 m | -55 °C | 125 °C | 0.125 " | 3.18 mm | Enter Number of Feet in Order Quantity | 110 °C | 1.02 mm | 0.04 in | ||||
Sumitomo Electric Interconnect Products, Inc. W3B2S 24/8 BLACK SPL | Black | Polyolefin (PO) | Adhesive Lined, Flame Retardant | 1 | 3 | 0.1 in | 2.54 mm | Tubing, Flexible | 300 ft | 91.4 m | -55 °C | 125 °C | 0.94 " | 23.88 mm | Enter Number of Feet in Order Quantity | 110 °C | 8.13 mm | 0.32 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 2.73 | |
| 5 | $ 2.49 | |||
| 10 | $ 1.89 | |||
| 25 | $ 1.79 | |||
| 50 | $ 1.69 | |||
| 100 | $ 1.59 | |||
Description
General part information
W3B2S Series
Heat Shrink Tubing, Flexible 0.252" (6.40mm) 3 to 1 Black Enter Number of Feet in Order Quantity
