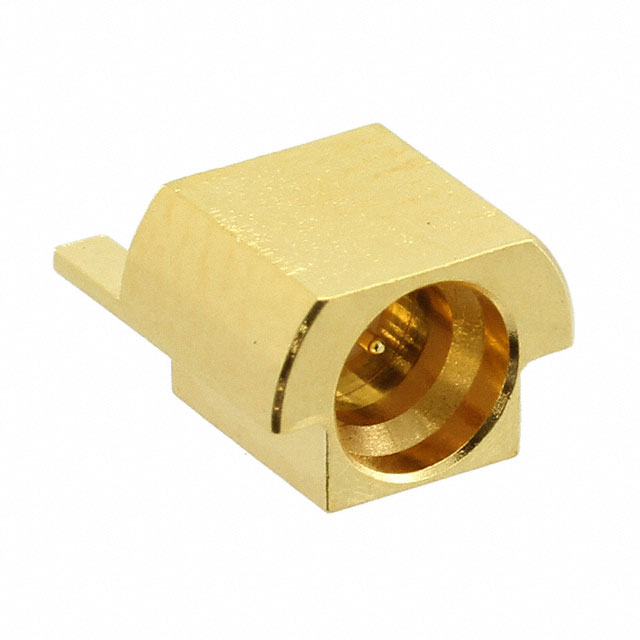

SMP-MSFD-PCE-1

Active

AMPHENOL RF

CONN SMP JACK STR 50OHM EDGE MNT

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN SMP JACK STR 50OHM EDGE MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMP-MSFD-PCE-1	SMP-MSFD Series

Body Finish	Gold	Gold
Body Material	Beryllium Copper	Brass, Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	-	HD, SMP
Connector Type	Male Pin, Jack	Male Pin, Jack, Receptacle
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	Snap-On	Snap-On
Features	Full Detent	Full Detent
Frequency - Max [Max]	18 GHz	12 - 6000 GHz
Housing Color	Gold	Gold, Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Feature	-	Bulkhead
Mounting Type	Cutout, Board Edge, Surface Mount	Free Hanging (In-Line), Surface Mount, Cutout, Board Edge, Through Hole
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 - -55 °C
Shield Termination	Solder	Push On, Solder

RF / COAXIAL CONNECTOR, SMP COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, BRASS

Part	Center Contact Plating	Mounting Feature	Body Material	Frequency - Max [Max]	Features	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Contact Termination	Dielectric Material	Mounting Type	Impedance	Connector Style	Connector Type	Center Contact Material	Number of Ports	Body Finish	Mating Cycles	Fastening Type
AMPHENOL RF SMP-MSFD-CSB	Gold	Bulkhead	Brass	26.5 GHz	Full Detent	Push On	165 °C	-55 °C	Gold	Solder	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	50 Ohms	HD, SMP	Jack, Male Pin	Brass	1	Gold
AMPHENOL RF SMP-MSFD-PCR	Gold		Brass	6000 MHz	Full Detent	Solder	165 °C	-65 ░C	Gold	Solder	Polyetheretherketone (PEEK)	Surface Mount	50 Ohms		Jack, Male Pin	Beryllium Copper	1	Gold	500	Snap-On
AMPHENOL RF SMP-MSFD-PCE-1	Gold		Beryllium Copper	18 GHz	Full Detent	Solder	165 °C	-65 ░C	Gold	Solder	Polytetrafluoroethylene (PTFE)	Board Edge, Cutout, Surface Mount	50 Ohms		Jack, Male Pin	Beryllium Copper	1	Gold	500	Snap-On
AMPHENOL RF SMP-MSFD-PCT	Gold		Brass	6000 MHz	Full Detent	Solder	165 °C	-65 ░C	Gold	Solder	Polyetheretherketone (PEEK)	Through Hole	50 Ohms		Male Pin, Receptacle	Brass	1	Gold		Snap-On
AMPHENOL RF SMP-MSFD-PCT-2	Gold		Stainless Steel	12 GHz	Full Detent	Solder	165 °C	-65 ░C	Silver	Solder	Polytetrafluoroethylene (PTFE)	Through Hole	50 Ohms		Jack, Male Pin	Beryllium Copper	1		500	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Jack, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount Solder
