6282-3SG-516
ActiveConxall/Switchcraft

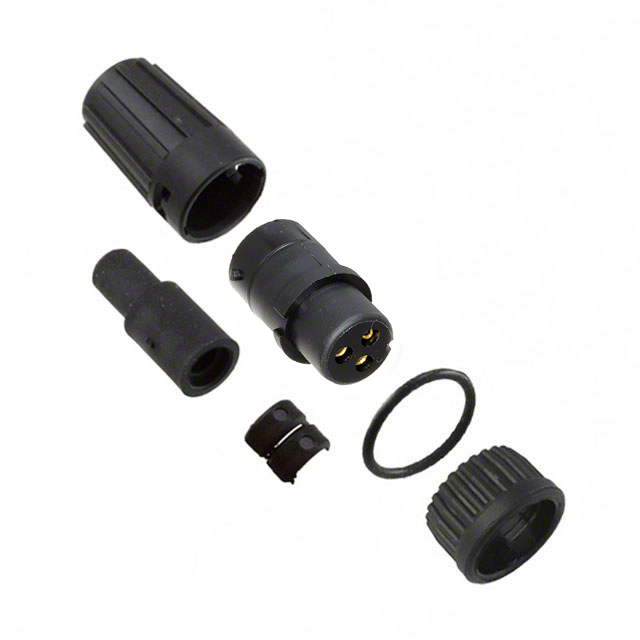

CONN PLUG FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6282-3SG-516
ActiveConxall/Switchcraft
CONN PLUG FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6282-3SG-516 | 6282-3SG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 5.33 - 6.35 mm |
| Cable Opening | - | 0.21 - 0.25 in |
| Cable Opening | - | 0.19 - 0.22 in |
| Cable Opening | - | 4.83 - 5.59 mm |
| Cable Opening | - | 0.13 - 0.15 in |
| Cable Opening | - | 3.3 - 3.81 mm |
| Cable Opening | - | 5.84 mm |
| Cable Opening | - | 2.29 mm |
| Cable Opening | - | 0.09 - 0.14 in |
| Cable Opening | - | 3.56 mm |
| Cable Opening [Max] [custom] | 0.18 in | 0.18 in |
| Cable Opening [Max] [custom] | 4.57 mm | 4.57 mm |
| Cable Opening [Min] [custom] | 0.16 in | 0.16 in |
| Cable Opening [Min] [custom] | 4.06 mm | 4.06 mm |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
6282-3SG Series
CONN PLUG FMALE 3P GOLD SLDR CUP
| Part | Primary Material | Connector Type | Mounting Type | Fastening Type | Features | Backshell Material, Plating | Applications | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Voltage Rating | Ingress Protection | Current Rating (Amps) | Contact Material | Shielding | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Color | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 6282-3SG-522 | Plastic | Female Sockets, Plug | Free Hanging (In-Line) | Bayonet Lock | Backshell | Nylon, Polyamide (PA) | Automotive, Communication Systems, Instrumentation | 6.35 mm | 0.25 in | 0.22 in | 5.59 mm | 600 V | Weathertight | Varies by Wire Gauge | Brass | Unshielded | Gold | -40 °C | 115 °C | Keyed | Black | ||||||||||
Conxall/Switchcraft 6282-3SG-516 | Plastic | Female Sockets, Plug | Free Hanging (In-Line) | Bayonet Lock | Backshell | Nylon, Polyamide (PA) | Automotive, Communication Systems, Instrumentation | 600 V | Weathertight | Varies by Wire Gauge | Brass | Unshielded | Gold | -40 °C | 115 °C | Keyed | Black | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm | ||||||||||
Conxall/Switchcraft 6282-3SG-519 | Plastic | Female Sockets, Plug | Free Hanging (In-Line) | Bayonet Lock | Backshell | Nylon, Polyamide (PA) | Automotive, Communication Systems, Instrumentation | 5.33 mm | 0.21 in | 0.19 in | 4.83 mm | 600 V | Weathertight | Varies by Wire Gauge | Brass | Unshielded | Gold | -40 °C | 115 °C | Keyed | Black | ||||||||||
Conxall/Switchcraft 6282-3SG-513 | Plastic | Female Sockets, Plug | Free Hanging (In-Line) | Bayonet Lock | Backshell | Nylon, Polyamide (PA) | Automotive, Communication Systems, Instrumentation | 600 V | Weathertight | Varies by Wire Gauge | Brass | Unshielded | Gold | -40 °C | 115 °C | Keyed | Black | 0.13 in, 0.15 in | 3.3 mm, 3.81 mm | ||||||||||||
Conxall/Switchcraft 6282-3SG-321 | Plastic | Female Sockets, Plug | Free Hanging (In-Line) | Bayonet Lock | Backshell | Nylon, Polyamide (PA) | Automotive, Communication Systems, Instrumentation | 0.23 in | 0.21 in | 5.33 mm | 600 V | Weathertight | Varies by Wire Gauge | Brass | Unshielded | Gold | -40 °C | 115 °C | Keyed | Black | 5.84 mm | ||||||||||
Conxall/Switchcraft 6282-3SG-311 | Plastic | Female Sockets, Plug | Free Hanging (In-Line) | Bayonet Lock | Backshell | Nylon, Polyamide (PA) | Automotive, Communication Systems, Instrumentation | 600 V | Weathertight | Varies by Wire Gauge | Brass | Unshielded | Gold | -40 °C | 115 °C | Keyed | Black | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.49 | |
| 10 | $ 10.18 | |||
| 25 | $ 9.79 | |||
| 50 | $ 9.40 | |||
| 100 | $ 8.88 | |||
| 300 | $ 8.09 | |||
| 500 | $ 7.57 | |||
| 1000 | $ 6.94 | |||
Description
General part information
6282-3SG Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
