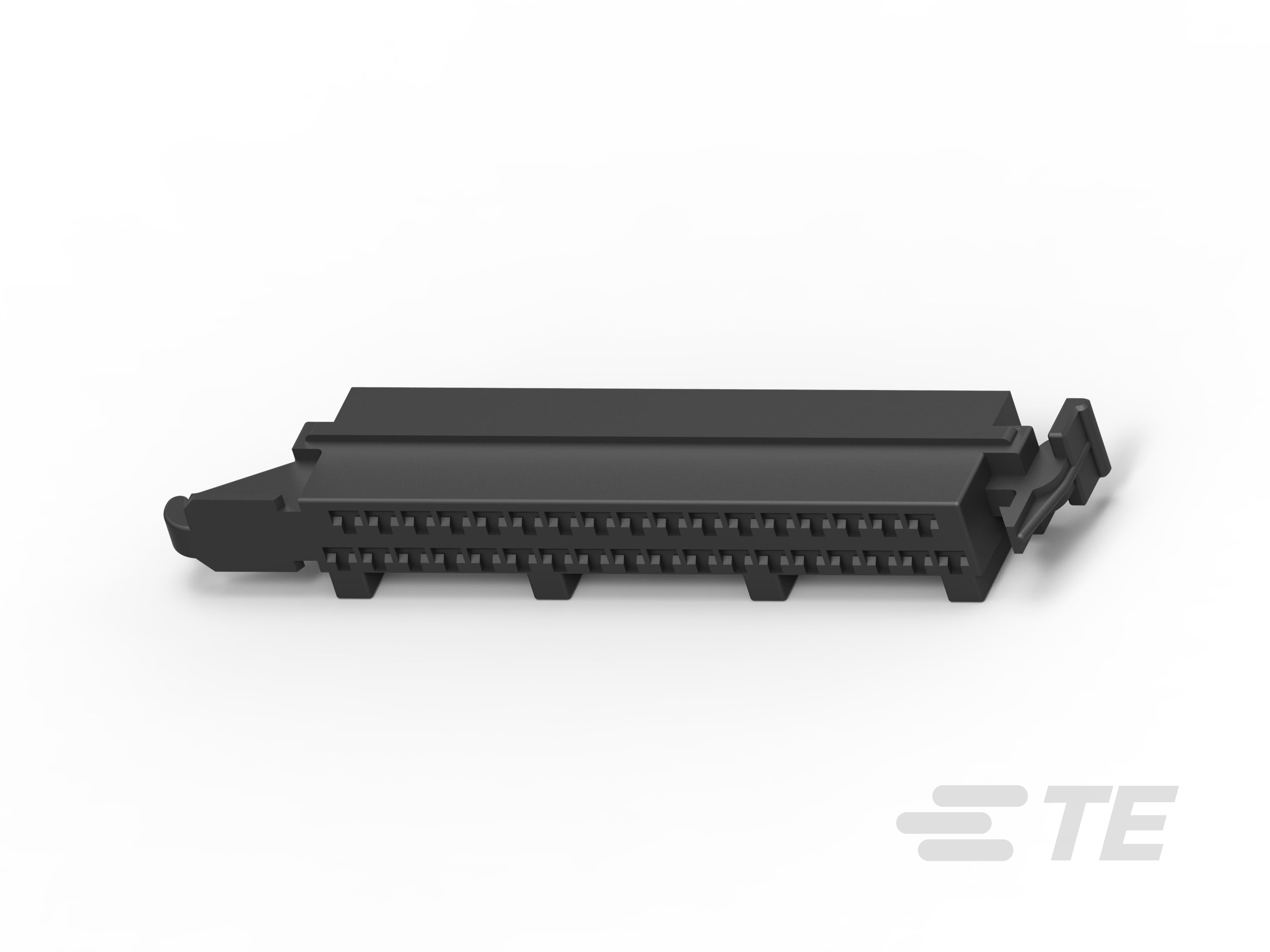

Specification	828892-1

Color	Black
Connector Type	Housing for Female Insert
Contact Type	Female Socket
Fastening Type	Detent Lock
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	35
Number of Rows	2
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Row Spacing	0.197 in

Junior Timer Series

Part	Note	Mounting Type	Number of Positions	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Number of Rows	Insulation Material	Color	Contact Type	Contact Termination	Row Spacing	Features	Fastening Type	Pin or Socket	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish	Contact Finish Thickness	Type
TE Connectivity AMP Connectors 281810-1	Contacts Not Included	Free Hanging (In-Line)	25	0.197 in	-30 °C	105 °C	Receptacle	2	Glass Filled Nylon 6/6 Polyamide (PA66)	Black	Female Socket	Crimp	0.197 in	Splash-Proof
TE Connectivity AMP Connectors 365058-3		Free Hanging (In-Line)	2				Receptacle	1	Nylon 6/6 Polyamide (PA66)	Black	Female Socket	Crimp
TE Connectivity AMP Connectors 365058-3	Contacts Not Included	Free Hanging (In-Line)	2				Receptacle	1	Nylon 6/6 Polyamide (PA66)	Black	Female Socket	Crimp
TE Connectivity AMP Connectors 827603-1	Contacts Not Included	Free Hanging (In-Line)	12	0.197 in			Receptacle	2	Glass Filled Nylon 6/6 Polyamide (PA66)	Black	Female Socket	Crimp	0.197 in
TE Connectivity AMP Connectors 1-825414-5		Free Hanging (In-Line)	2				Receptacle	1	Glass Filled Nylon 6/6 Polyamide (PA66)	Black	Female Socket	Crimp			Latch Holder
TE Connectivity AMP Connectors 827551-3		Free Hanging (In-Line)	2	0.197 in			Receptacle	1	Glass Filled Nylon 6/6 Polyamide (PA66)	Black	Female Socket	Crimp
TE Connectivity AMP Connectors 881647-1		Panel Mount	8	0.197 in	-40 °C	80 °C	Receptacle	2	Nylon Polyamide (PA)				0.228 in
TE Connectivity AMP Connectors 925596-2												Crimp				Socket	15 AWG	20.5 AWG	Tin
TE Connectivity AMP Connectors 927770-3												Crimp				Socket	17 AWG	20.5 AWG	Tin	39.4 Ąin	Power
TE Connectivity AMP Connectors 962191-1		Free Hanging (In-Line)	8	0.236 in			Receptacle	2	Nylon 6/6 Polyamide (PA66)	Beige	Female Socket	Crimp	0.197 in		Latch Lock
