7381-3SG-300
ActiveConxall/Switchcraft

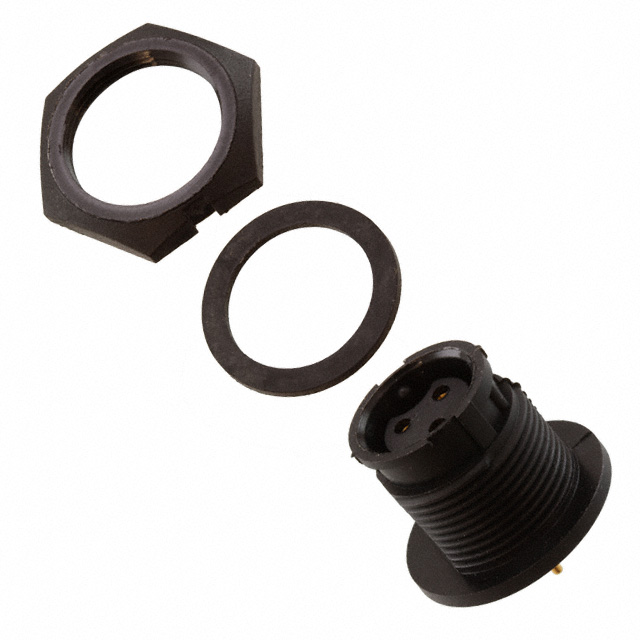

CONN RCPT FMALE 3POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7381-3SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 3POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7381-3SG-300 | 7381-3SG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 600 V | 600 V |
7381-3SG Series
CONN RCPT FMALE 3POS GOLD SOLDER
| Part | Orientation | Backshell Material, Plating | Contact Material | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Termination | Shielding | Connector Type | Primary Material | Mounting Type | Ingress Protection | Fastening Type | Color | Applications | Contact Finish - Mating | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 7381-3SG-3ES | Keyed | Nylon, Polyamide (PA) | Brass | Bulkhead - Front Side Nut | -40 °C | 115 °C | Varies by Wire Gauge | Solder | Unshielded | Receptacle, Female Sockets | Plastic | Panel Mount, Through Hole | Weathertight | Bayonet Lock | Black | Automotive, Communication Systems, Instrumentation | Gold | 600 V |
Conxall/Switchcraft 7381-3SG-300 | Keyed | Nylon, Polyamide (PA) | Brass | Bulkhead - Front Side Nut | -40 °C | 115 °C | Varies by Wire Gauge | Solder | Unshielded | Receptacle, Female Sockets | Plastic | Panel Mount, Through Hole | Weathertight | Bayonet Lock | Black | Automotive, Communication Systems, Instrumentation | Gold | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.39 | |
| 10 | $ 7.58 | |||
| 25 | $ 7.16 | |||
| 50 | $ 6.99 | |||
| 100 | $ 6.64 | |||
| 300 | $ 5.94 | |||
| 500 | $ 5.59 | |||
| 1000 | $ 4.89 | |||
Description
General part information
7381-3SG Series
3 Position Circular Connector Receptacle, Female Sockets Solder
Documents
Technical documentation and resources
