ZXTC6718MCTA

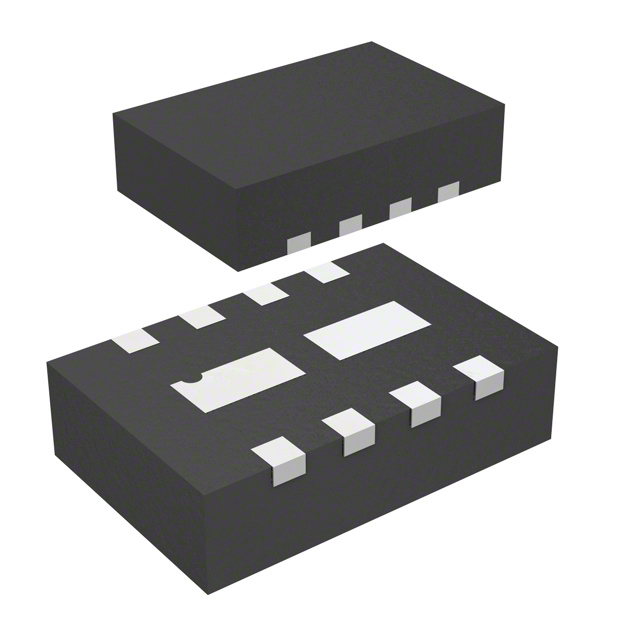

Bipolar (BJT) Transistor Array 1 NPN, 1 PNP 20V 4.5A, 3.5A 140MHz, 180MHz 1.7W Surface Mount W-DFN3020-8
Technical Specifications
Parameters and characteristics for this part
| Specification | ZXTC6718MCTA |
|---|---|
| Current - Collector (Ic) (Alternate) | 3.5 A |
| Current - Collector (Ic) (Max) | 4.5 A |
| Current - Collector Cutoff (Max) | 100 nA |
| DC Current Gain (hFE) (Min) | 150, 200 |
| Frequency - Transition (Options) | 180MHz, 140MHz |
| Mounting Type | Surface Mount |
| NPN Count | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 8-WDFN Exposed Pad |
| Package Name | W-DFN3020-8 |
| PNP Count | 1 |
| Power - Max | 1.7 W |
| Transistor Type | PNP, NPN |
| Vce Saturation (Max) | 300 mV, 300 mV |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
