MLV1206E33003T
ActiveVishay General Semiconductor - Diodes Division
VARISTOR 200A 1206
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MLV1206E33003T
ActiveVishay General Semiconductor - Diodes Division
VARISTOR 200A 1206
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MLV1206E33003T |
|---|---|
| Capacitance @ Frequency | 500 pF |
| Current - Surge | 200 A |
| Energy | 1.1 J |
| Maximum AC Volts [Max] | 30 V |
| Maximum DC Volts [Max] | 38 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -55 C |

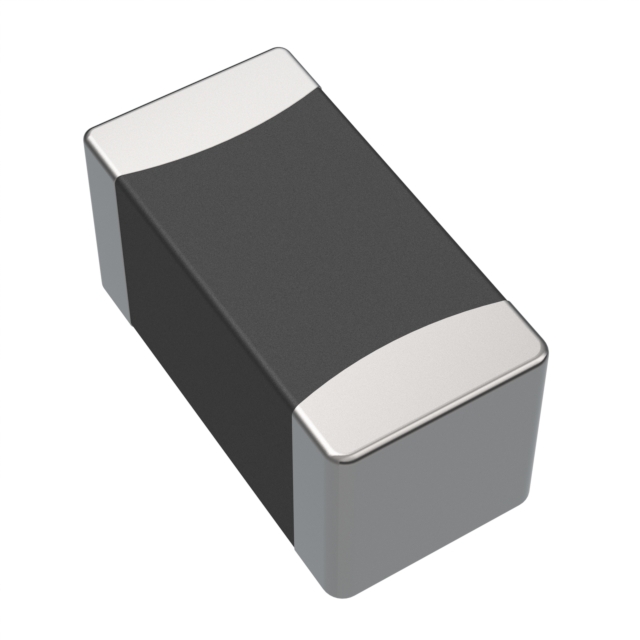

| Package / Case | 1206 (3216 Metric) |
| Varistor Voltage (Max) [Max] | 51.7 V |
| Varistor Voltage (Min) [Min] | 42.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.62 | |
| 10 | $ 0.55 | |||
| 25 | $ 0.52 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.39 | |||
| Digi-Reel® | 1 | $ 0.62 | ||
| 10 | $ 0.55 | |||
| 25 | $ 0.52 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.39 | |||
| Tape & Reel (TR) | 3000 | $ 0.25 | ||
Description
General part information
MLV1206 Series
200 A Varistor 1 Circuit Surface Mount, MLCV 1206 (3216 Metric)
Documents
Technical documentation and resources
