ACBP4-PM-20A

Active

OptiFuse

OTHER INDUSTRIAL CONTROL PRODUCTS ROHS

Search across all available documentation for this part.

Active

OptiFuse

OTHER INDUSTRIAL CONTROL PRODUCTS ROHS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.05
LCSC	Piece	1	$ 1.07

General part information

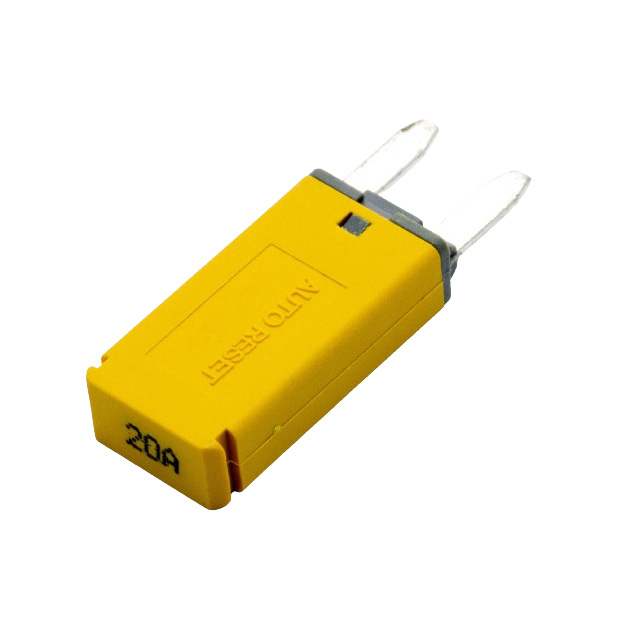

Circuit Breaker 20A AC 14 V DC Automatic Reset

Technical documentation and resources

Part	Number of Poles	Voltage Rating - DC	Current Rating (Amps)	Approval Agency	Illumination	Actuator Type
OptiFuse ACBP4-PM-20A	1	14 V	20 A	SAE J553	None	Automatic Reset
OptiFuse ACBP4-PS-15A	1	58 VDC	15 A	SAE J553	None	Automatic Reset
OptiFuse ACBP4-PM-25A	1	14 V	25 A	SAE J553	None	Automatic Reset
OptiFuse ACBP4-PS-5A	1	58 VDC	5 A	SAE J553	None	Automatic Reset
OptiFuse ACBP4-PM-10A	1	14 V	10 A	SAE J553	None	Automatic Reset
OptiFuse ACBP4-PL-10A	1	14 V	10 A	SAE J553	None	Automatic Reset
OptiFuse ACBP4-PS-20A	1	58 VDC	20 A	SAE J553	None	Automatic Reset
OptiFuse ACBP4-PL-20A	1	14 V	20 A	SAE J553	None	Automatic Reset
OptiFuse ACBP4-PM-7.5A	1	14 V	7.5 A	SAE J553	None	Automatic Reset
OptiFuse ACBP4-PM-30A	1	14 V	30 A	SAE J553	None	Automatic Reset
