Description
General part information
002603 Series

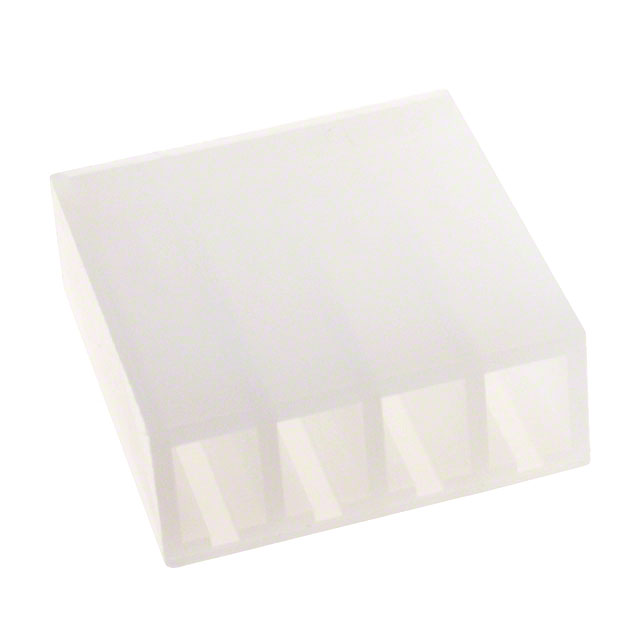

4 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0026034041 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Fastening Type | Friction Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Pitch | 0.156 in |
