Description
General part information

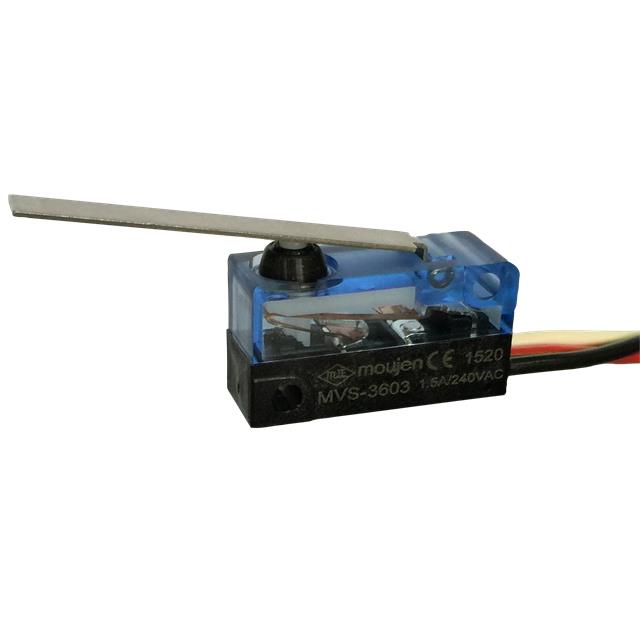

MVS-3603
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MVS-3603 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating | 0.5 A, 1.5 A |
| Differential Travel (Linear) | 0.045 in |
| Electrical Life (Cycles) | 50000 |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 50 gf |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Overtravel (Linear) | 0.235 in |
| Pretravel (Length) | 0.114 in |
| Release Force | 8 gf |
| Switch Function | On-Mom |
| Termination Style | Cable Leads |
| Voltage Rating - AC | 230 V |
| Voltage Rating - DC | 60 V |
