Z0409NF 1AA2
ActiveSTMicroelectronics

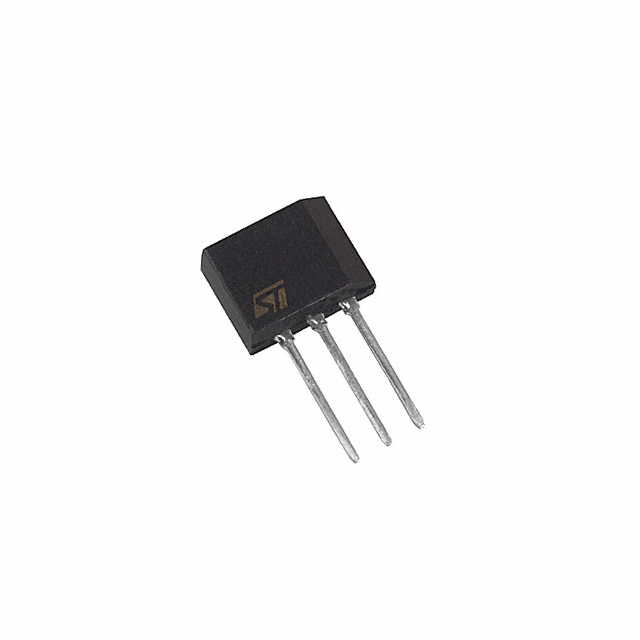

TRIAC SENS GATE 800V 4A TO202-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

Z0409NF 1AA2
ActiveSTMicroelectronics
TRIAC SENS GATE 800V 4A TO202-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | Z0409NF 1AA2 | Z0409 Series |
---|---|---|
- | - | |
Configuration | Single | Single |
Current - Gate Trigger (Igt) (Max) [Max] | 10 mA | 10 mA |
Current - Hold (Ih) (Max) [Max] | 10 mA | 10 mA |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 20 A, 21 A | 20 - 21 A |
Current - On State (It (RMS)) (Max) [Max] | 4 A | 4 A |
Mounting Type | Through Hole | Through Hole |
Operating Temperature [Max] | 125 ¯C | 125 ¯C |
Operating Temperature [Min] | -40 °C | -40 °C |
Package / Case | TO-202 No Tab | TO-202 No Tab |
Supplier Device Package | TO-202-3 | TO-202-3 |
Triac Type | Logic - Sensitive Gate | Logic - Sensitive Gate |
Voltage - Gate Trigger (Vgt) (Max) [Max] | 1.3 V | 1.3 V |
Voltage - Off State | 800 V | 600 - 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Z0409 Series
THYRISTOR TRIAC 600V 21A 3-PIN TO-202 TUBE
Part | Current - On State (It (RMS)) (Max) [Max] | Current - Hold (Ih) (Max) [Max] | Configuration | Package / Case | Supplier Device Package | Mounting Type | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) [Max] | Triac Type | Current - Non Rep. Surge 50, 60Hz (Itsm) | Operating Temperature [Min] | Operating Temperature [Max] | Current - Gate Trigger (Igt) (Max) [Max] |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics Z0409MF0AA2 | 4 A | 10 mA | Single | TO-202 No Tab | TO-202-3 | Through Hole | 600 V | 1.3 V | Logic - Sensitive Gate | 20 A, 21 A | -40 °C | 125 ¯C | 10 mA |
STMicroelectronics Z0409MF0AA2 | |||||||||||||
STMicroelectronics Z0409NF 1AA2 | 4 A | 10 mA | Single | TO-202 No Tab | TO-202-3 | Through Hole | 800 V | 1.3 V | Logic - Sensitive Gate | 20 A, 21 A | -40 °C | 125 ¯C | 10 mA |
Description
General part information
Z0409 Series
TRIAC Logic - Sensitive Gate 800 V 4 A Through Hole TO-202-3
