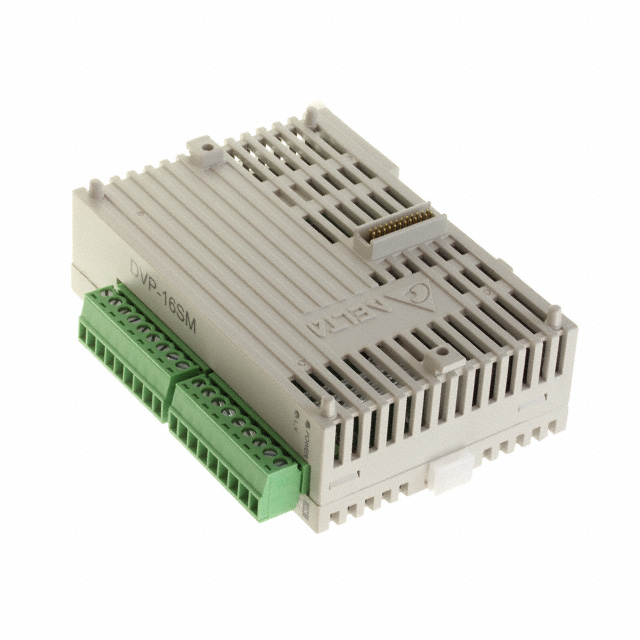

DVP16SM11N

Delta Electronics/Industrial Automation

INPUT MOD 16 DIG 100-240V/24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DVP16SM11N

Delta Electronics/Industrial Automation

INPUT MOD 16 DIG 100-240V/24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 132.12
		12	$ 124.35
		30	$ 120.47
		54	$ 112.69

Description

General part information

DVP16 Series

Input Module DIN Rail 100 ~ 240VAC, 24VDC

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DVP16SM11N	DVP16 Series

Approval Agency	cULus, CE	cULus, CE
Communications	-	RS-485, RS-232
Display Type	-	No Display
Expandable	-	True
For Use With/Related Products	DVP-S Series	DVP-S Series, DVP-ES2/EX2 Series
Memory Size	-	10 kpts
Mounting Type	DIN Rail	DIN Rail, Chassis Mount
Number of Inputs and Type [custom]	16	8 - 16
Number of Inputs and Type [custom]	Digital	Digital
Number of Outputs and Type	-	Solid State
Number of Outputs and Type	-	16 Outputs
Number of Outputs and Type	-	8
Number of Outputs and Type	-	Relay, Solid State
Number of Outputs and Type	-	8
Termination Style	Pluggable Screw Terminal	Pluggable Screw Terminal, Screw Terminal
Type	Input Module	Input Module, Output Module, Input, Output (I/O) Module
Voltage - Supply	24 VDC	24 VDC
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	100 VAC	100 VAC

DVP16 Series

INPUT MOD 16 DIG 100-240V/24V

Part	For Use With/Related Products	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Supply	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Mounting Type	Termination Style	Type	Approval Agency	Number of Outputs and Type	Number of Outputs and Type	Number of Outputs and Type [x]	Number of Outputs and Type [custom]	Memory Size	Communications	Display Type	Number of Outputs and Type [custom]
Delta Electronics/Industrial Automation DVP16SM11N	DVP-S Series	100 VAC	240 VAC	24 VDC	16	Digital	DIN Rail	Pluggable Screw Terminal	Input Module	CE, cULus
Delta Electronics/Industrial Automation DVP16SN11T	DVP-S Series	100 VAC	240 VAC	24 VDC			DIN Rail	Pluggable Screw Terminal	Output Module	CE, cULus	Solid State	16 Outputs
Delta Electronics/Industrial Automation DVP16XM211N	DVP-ES2/EX2 Series			24 VDC	16	Digital	Chassis Mount, DIN Rail	Screw Terminal	Input Module	CE, cULus
Delta Electronics/Industrial Automation DVP16XP211R	DVP-ES2/EX2 Series			24 VDC	8	Digital	Chassis Mount, DIN Rail	Screw Terminal	Input, Output (I/O) Module	CE, cULus			8	Relay
Delta Electronics/Industrial Automation DVP16ES200R		100 VAC	240 VAC		8	Digital	Chassis Mount, DIN Rail			CE, cULus			8	Relay	10 kpts	RS-232, RS-485	No Display
Delta Electronics/Industrial Automation DVP16XN211T	DVP-ES2/EX2 Series			24 VDC			Chassis Mount, DIN Rail	Screw Terminal	Output Module	CE, cULus	Solid State	16 Outputs
Delta Electronics/Industrial Automation DVP16XP211T	DVP-ES2/EX2 Series			24 VDC	8	Digital	Chassis Mount, DIN Rail	Screw Terminal	Input, Output (I/O) Module	CE, cULus				Solid State				8
Delta Electronics/Industrial Automation DVP16ES200T		100 VAC	240 VAC		8	Digital	Chassis Mount, DIN Rail			CE, cULus				Solid State	10 kpts	RS-232, RS-485	No Display	8
