109D826X9050T2
ActiveVishay Dale
CAPACITOR,82UF,50VDC,10-% TOL,10+% TOL
109D826X9050T2
ActiveVishay Dale
CAPACITOR,82UF,50VDC,10-% TOL,10+% TOL
Description
General part information
109D826X9050T2

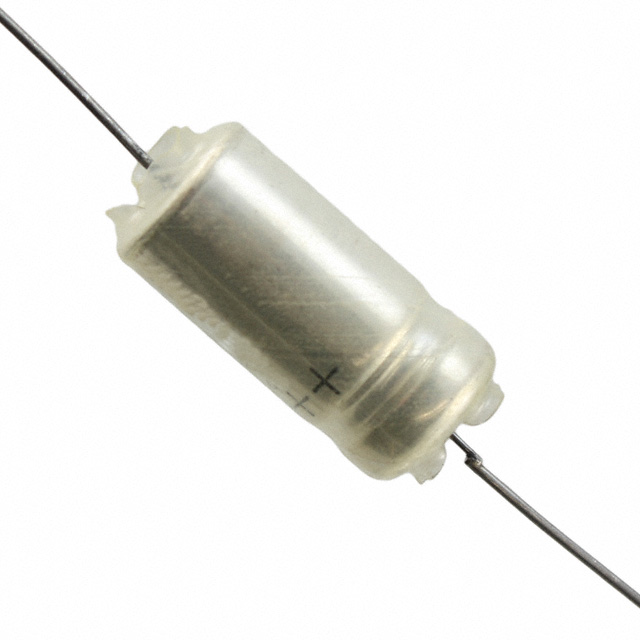

82 µF Hermetically Sealed Tantalum Capacitors 50 V Axial 4Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | 109D826X9050T2 |
|---|---|
| Capacitance | 82 µF |
| ESR (Equivalent Series Resistance) | 4 Ohm |
| Features | Wet Tantalum |
| Manufacturer Size Code | T |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 0.921 in |
| Tolerance | 10 % |
| Type | Hermetically Sealed, Elastomer Sealed |
| Voltage - Rated | 50 V |
