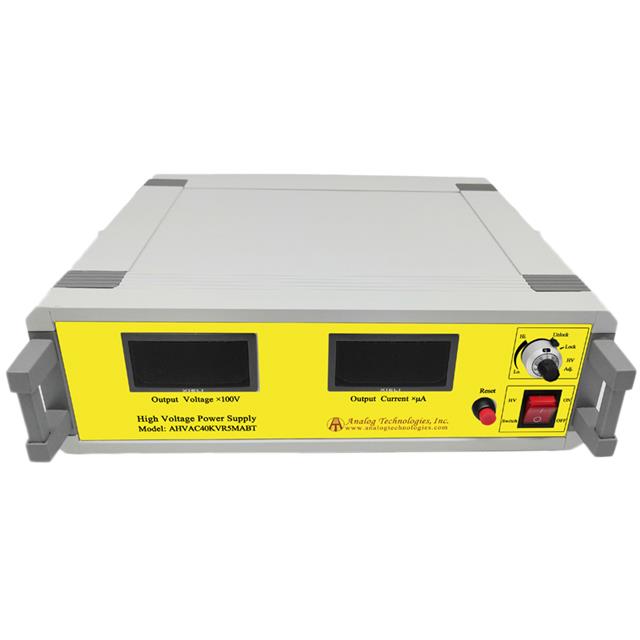

AHVAC40KVR5MABT
ActiveAnalog Technologies, Inc.
AC/DC CONVERTER 40000V
AHVAC40KVR5MABT
ActiveAnalog Technologies, Inc.
AC/DC CONVERTER 40000V
Description
General part information
AHVAC40KVR5MABT
Enclosed AC DC Converters 1 Output 0 ~ 40000V 90 ~ 230 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AHVAC40KVR5MABT |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 5 mA |
| Efficiency | 70 % |
| Features | Adjustable Output |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Size / Dimension Height | 4.92 in |
| Size / Dimension Length | 13.78 in |
| Size / Dimension Width | 11.81 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 230 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 (Max) | 40000 V |
| Voltage - Output 1 (Min) | 0 V |
