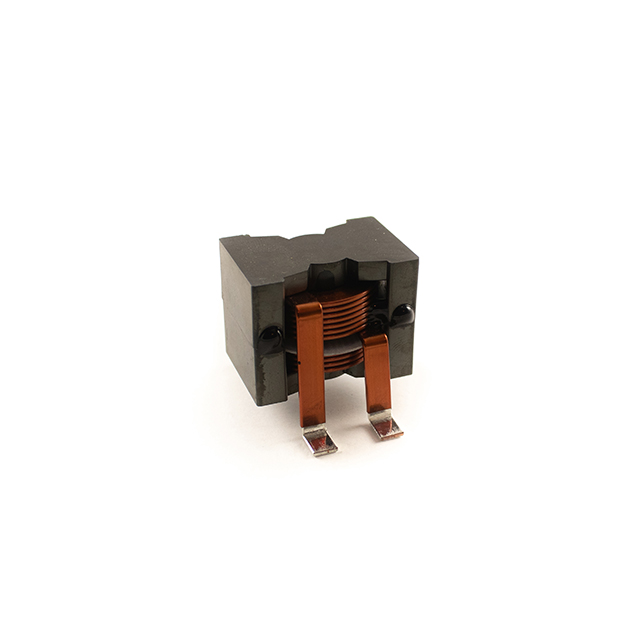

FWPQ3225-4628-RC
ActiveAllied Components International
360UH,72V FLAT WIRE SMD POWER
FWPQ3225-4628-RC
ActiveAllied Components International
360UH,72V FLAT WIRE SMD POWER
Description
General part information
FWPQ3225-4628-RC
360µH Pulse Transformer 2:1 Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FWPQ3225-4628-RC |
|---|---|
| Height - Seated (Max) | 1.23 in |
| Inductance | 0.36 mH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 1.681 in |
| Size / Dimension Width | 1.319 in |
| Turns Ratio - Primary | 2 |
| Turns Ratio - Secondary | 1 |
