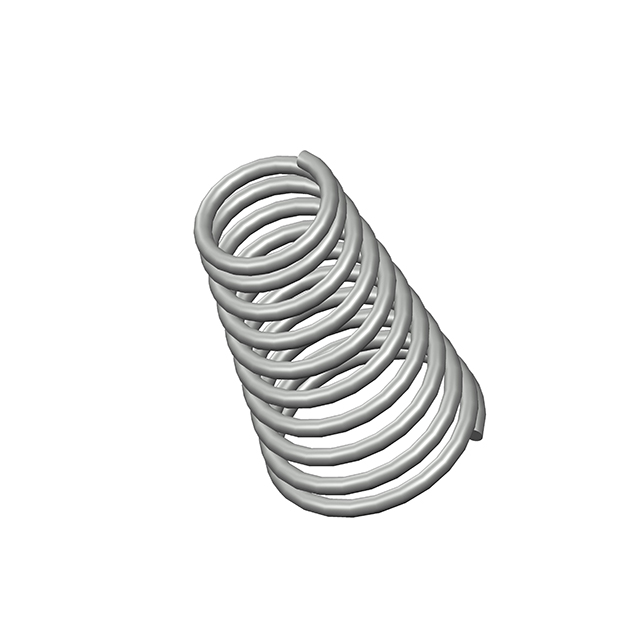

TA-2246CS
ActiveCentury Spring Corp
LO= 1.5, SO= 1, W= 0.12
TA-2246CS
ActiveCentury Spring Corp
LO= 1.5, SO= 1, W= 0.12
Description
General part information
TA-2246CS
LO= 1.5, SO= 1, W= 0.12
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2246CS |
|---|---|
| Diameter - Inside | 0.76 in |
| Diameter - Large Outside | 1.5 in |
| Diameter - Small Outside | 1 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 2.5 in |
| Material | Spring Steel |
| Rate (lbs/in) | 25.8 lbs/in |
| Type | Tapered |
| Wire Diameter | 0.12 in |
