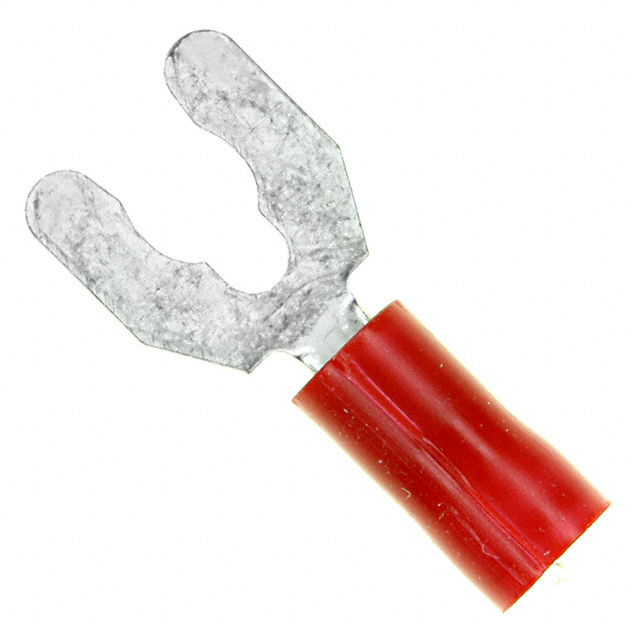

8-52950-1
ActiveTE Connectivity Raychem Cable Protection
PG SPR SPD 22-16COMM 22-18MIL8
Deep-Dive with AI
Search across all available documentation for this part.
8-52950-1
ActiveTE Connectivity Raychem Cable Protection
PG SPR SPD 22-16COMM 22-18MIL8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-52950-1 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Serrated Termination |
| Insulation | Insulated |
| Insulation Diameter [Max] [diameter] | 0.14 in |
| Insulation Diameter [Max] [diameter] | 3.56 mm |
| Insulation Diameter [Min] [diameter] | 0.105 in |
| Insulation Diameter [Min] [diameter] | 2.67 mm |
| Length - Overall [x] | 22.15 mm |
| Length - Overall [x] | 0.872 " |
| Length - Ring Center to Termination [x] | 0.281 in |
| Length - Ring Center to Termination [x] | 7.14 mm |
| Length - Termination | 10.57 mm |
| Length - Termination | 0.416 in |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Snap, Spring |
| Termination | Crimp |
| Width - Outer Edges [x] | 0.375 in |
| Width - Outer Edges [x] | 9.53 mm |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.81 | |
| 10 | $ 0.78 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.75 | |||
| 100 | $ 0.63 | |||
| 300 | $ 0.59 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.49 | |||
| 2500 | $ 0.46 | |||
Description
General part information
PLASTI-GRIP Series
Terminals TERMINAL R PVF2 PG
