PEC09DACN

Active

Sullins Connector Solutions

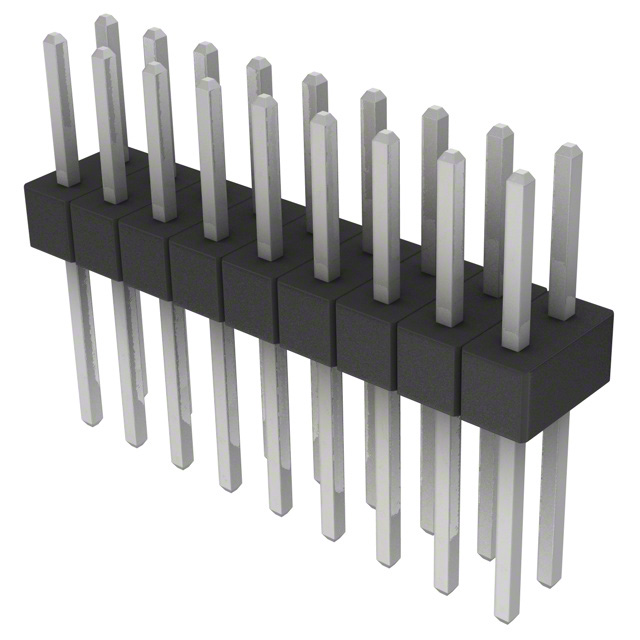

3A STRAIGHT TIN 18P -65℃~+125℃ 2.54MM DOUBLE ROW BLACK PHOSPHOR BRONZE 2.54MM PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

PEC09DACN

Active

Sullins Connector Solutions

3A STRAIGHT TIN 18P -65℃~+125℃ 2.54MM DOUBLE ROW BLACK PHOSPHOR BRONZE 2.54MM PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC09DACN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.32 in
Contact Length - Post [x]	8.13 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	16.51 mm
Overall Contact Length	0.65 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC09 Series

Part	Insulation Height	Insulation Height	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Shape	Contact Finish - Post	Shrouding	Insulation Material	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Fastening Type	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating [x]	Termination	Style	Connector Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length
Sullins Connector Solutions PEC09SGBN	3.56 mm	0.14 in	1	125 °C	-65 ░C	2.54 µm	100 µin	Male Pin	Square	Tin	Unshrouded	Polybutylene Terephthalate (PBT)	9	All	2.54 çm	100 çin	3 A	Push-Pull	Black	0.318 "	8.08 mm	Solder	Board to Board Cable	Breakaway Header	0.1 in	2.54 mm	UL94 V-0	Through Hole Right Angle	5.08 mm	0.2 in	Phosphor Bronze
Sullins Connector Solutions PEC09SBDN	3.56 mm	0.14 in	1	125 °C	-65 ░C	2.54 µm	100 µin	Male Pin	Square	Tin	Unshrouded	Polybutylene Terephthalate (PBT)	9	All	2.54 çm	100 çin	3 A	Push-Pull	Black	0.23 in		Solder	Board to Board Cable	Breakaway Header	0.1 in	2.54 mm	UL94 V-0	Through Hole Right Angle	10.16 mm	0.4 in	Phosphor Bronze	5.84 mm
Sullins Connector Solutions PEC09SACN	2.54 mm	0.1 in	1	125 °C	-65 ░C	2.54 µm	100 µin	Male Pin	Square	Tin	Unshrouded	Polybutylene Terephthalate (PBT)	9	All	2.54 çm	100 çin	3 A	Push-Pull	Black	0.23 in		Solder	Board to Board Cable	Breakaway Header	0.1 in	2.54 mm	UL94 V-0	Through Hole	8.13 mm	0.32 in	Phosphor Bronze	5.84 mm	16.51 mm	0.65 in
Sullins Connector Solutions PEC09DAEN	2.54 mm	0.1 in	2	125 °C	-65 ░C	2.54 µm	100 µin	Male Pin	Square	Tin	Unshrouded	Polybutylene Terephthalate (PBT)	18	All	2.54 çm	100 çin	3 A	Push-Pull	Black	0.23 in		Solder	Board to Board Cable	Breakaway Header	0.1 in	2.54 mm	UL94 V-0	Through Hole			Phosphor Bronze	5.84 mm		21.59 mm	13.21 mm	0.52 "	2.54 mm	0.1 in	0.85 in
Sullins Connector Solutions PEC09DGBN	6.1 mm	0.24 in	2	125 °C	-65 ░C	2.54 µm	100 µin	Male Pin	Square	Tin	Unshrouded	Polybutylene Terephthalate (PBT)	18	All	2.54 çm	100 çin	3 A	Push-Pull	Black	0.318 "	8.08 mm	Solder	Board to Board Cable	Breakaway Header	0.1 in	2.54 mm	UL94 V-0	Through Hole Right Angle	5.08 mm	0.2 in	Phosphor Bronze						2.54 mm	0.1 in
Sullins Connector Solutions PEC09SAEN	2.54 mm	0.1 in	1	125 °C	-65 ░C	2.54 µm	100 µin	Male Pin	Square	Tin	Unshrouded	Polybutylene Terephthalate (PBT)	9	All	2.54 çm	100 çin	3 A	Push-Pull	Black	0.23 in		Solder	Board to Board Cable	Breakaway Header	0.1 in	2.54 mm	UL94 V-0	Through Hole			Phosphor Bronze	5.84 mm		21.59 mm	13.21 mm	0.52 "			0.85 in
Sullins Connector Solutions PEC09SFCN	2.54 mm	0.1 in	1	125 °C	-65 ░C	2.54 µm	100 µin	Male Pin	Square	Tin	Unshrouded	Polybutylene Terephthalate (PBT)	9	All	2.54 çm	100 çin	3 A	Push-Pull	Black	0.318 "	8.08 mm	Solder	Board to Board Cable	Breakaway Header	0.1 in	2.54 mm	UL94 V-0	Through Hole	8.13 mm	0.32 in	Phosphor Bronze			18.75 mm					0.738 "
Sullins Connector Solutions PEC09DAGN	2.54 mm	0.1 in	2	125 °C	-65 ░C	2.54 µm	100 µin	Male Pin	Square	Tin	Unshrouded	Polybutylene Terephthalate (PBT)	18	All	2.54 çm	100 çin	3 A	Push-Pull	Black	0.23 in		Solder	Board to Board Cable	Breakaway Header	0.1 in	2.54 mm	UL94 V-0	Through Hole	18.29 mm	0.72 "	Phosphor Bronze	5.84 mm		26.67 mm			2.54 mm	0.1 in	1.05 in
Sullins Connector Solutions PEC09DACN	2.54 mm	0.1 in	2	125 °C	-65 ░C	2.54 µm	100 µin	Male Pin	Square	Tin	Unshrouded	Polybutylene Terephthalate (PBT)	18	All	2.54 çm	100 çin	3 A	Push-Pull	Black	0.23 in		Solder	Board to Board Cable	Breakaway Header	0.1 in	2.54 mm	UL94 V-0	Through Hole	8.13 mm	0.32 in	Phosphor Bronze	5.84 mm	16.51 mm	0.65 in			2.54 mm	0.1 in
Sullins Connector Solutions PEC09DFCN	2.54 mm	0.1 in	2	125 °C	-65 ░C	2.54 µm	100 µin	Male Pin	Square	Tin	Unshrouded	Polybutylene Terephthalate (PBT)	18	All	2.54 çm	100 çin	3 A	Push-Pull	Black	0.318 "	8.08 mm	Solder	Board to Board Cable	Breakaway Header	0.1 in	2.54 mm	UL94 V-0	Through Hole	8.13 mm	0.32 in	Phosphor Bronze			18.75 mm			2.54 mm	0.1 in	0.738 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.90
		10	$ 1.45
		100	$ 1.12
		500	$ 0.94
		1000	$ 0.88
		5000	$ 0.82
LCSC	Piece	1	$ 1.82
		200	$ 0.73
		500	$ 0.70
		1000	$ 0.69

Description

General part information

PEC09 Series

Connector Header Through Hole 18 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
