2941332

Active

Phoenix Contact

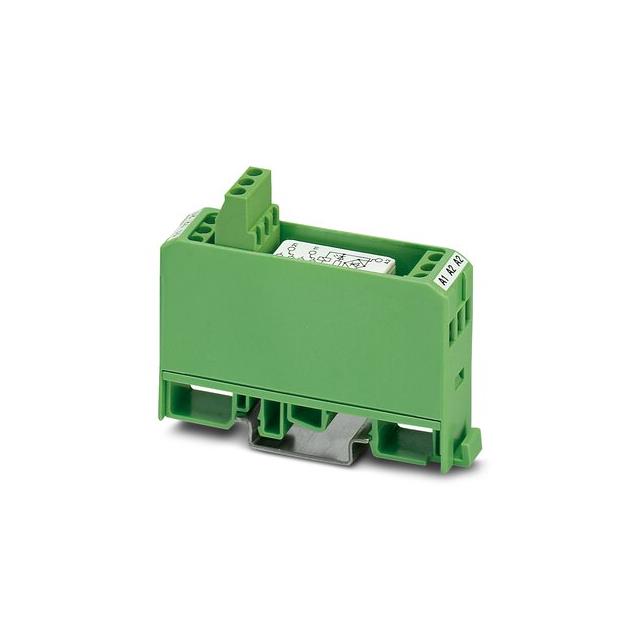

RELAY GEN PURPOSE DPDT 5A 48V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 5A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	2941332

Approval Agency	UL, EAC, cULus
Coil Current	10 mA
Coil Resistance	4.8 kOhms
Coil Type	Non Latching
Coil Voltage	48 VAC/DC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	5 A
Features	Lighted Indicator, Socket Included
Load - Max Switching	1250 VA, 120 W
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

RELAY GEN PURPOSE DPDT 5A 48V

Part	Contact Rating (Current)	Load - Max Switching	Switching Voltage	Contact Material	Operate Time	Coil Voltage	Approval Agency	Coil Current	Coil Type	Release Time	Features	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Termination Style	Relay Type	Mounting Type
Phoenix Contact 2941332	5 A	120 W, 1250 VA	250 VAC, 250 VDC	Gold (Au), Silver Nickel (AgNi)	8 ms	48 VAC/DC	cULus, EAC, UL	10 mA	Non Latching	10 ms	Lighted Indicator, Socket Included	DPDT (2 Form C)	-20 C	40 °C	4.8 kOhms	Screw Terminal	General Purpose	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 116.07

General part information

General Purpose Relay DPDT (2 Form C) 48VAC/DC Coil DIN Rail
