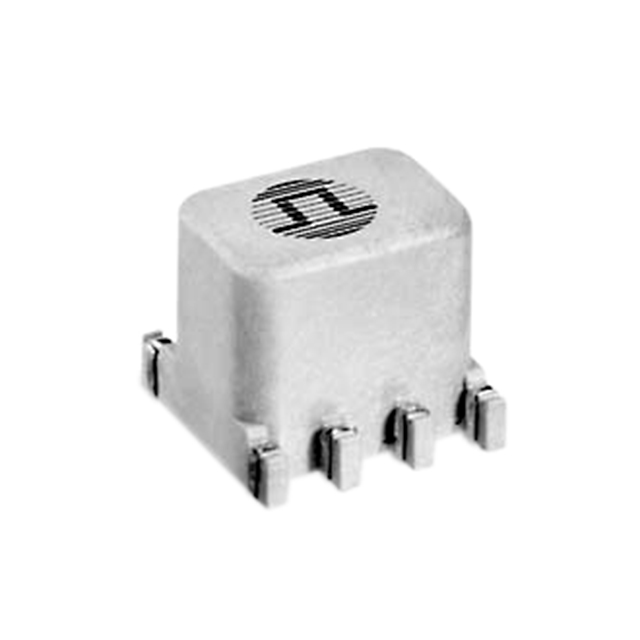

T8006NLT
ActivePulse Electronics
CMC 470UH 4LN SMD
T8006NLT
ActivePulse Electronics
CMC 470UH 4LN SMD
Description
General part information
T8006NLT
470 µH @ 100 kHz 4 Line Common Mode Choke Surface Mount DCR 600mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | T8006NLT |
|---|---|
| DC Resistance (DCR) (Max) | 600 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.31 in |
| Inductance | 470 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 8 Flat Lead, Vertical |
| Package Leads | 8 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.36 in |
| Size / Dimension Width | 0.34 in |
