A7MFB-0906M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AMP09B/AE09M/AFP09B
Deep-Dive with AI
Search across all available documentation for this part.
A7MFB-0906M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AMP09B/AE09M/AFP09B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7MFB-0906M | A7MFB Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Plug, Male Pins | Plug, Male Pins |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 6 ft | 6 - 10 ft |
| Length | 1.83 m | 1.83 - 3.05 m |
| Number of Positions | 9 | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB9 | DB25, DB9, DB37, DB15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.51 | |
| 10 | $ 16.99 | |||
| 25 | $ 15.77 | |||
| 50 | $ 14.91 | |||
| 100 | $ 14.10 | |||
| 250 | $ 13.09 | |||
| 500 | $ 12.38 | |||
A7MFB Series
CABLE D-SUB-AMP25B/AE25M/AFP25B
| Part | Color | 1st Connector | Length | Length | Shielding | Contact Finish | Type | 2nd Connector | Contact Finish Thickness | Contact Finish Thickness | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7MFB-2506M | Multiple, Ribbon | Female Sockets, Receptacle | 6 ft | 1.83 m | Unshielded | Gold | DB25 | Plug, Male Pins | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7MFB-0906M | Multiple, Ribbon | Female Sockets, Receptacle | 6 ft | 1.83 m | Unshielded | Gold | DB9 | Plug, Male Pins | 0.76 Ám | 30 Áin | 9 |
TE Connectivity AMP Connectors A7MFB-2510M | Multiple, Ribbon | Female Sockets, Receptacle | 10 ft | 3.05 m | Unshielded | Gold | DB25 | Plug, Male Pins | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7MFB-3706G | Female Sockets, Receptacle | 6 ft | 1.83 m | Unshielded | Gold | DB37 | Plug, Male Pins | 0.76 Ám | 30 Áin | 37 | |
TE Connectivity AMP Connectors A7MFB-0906G | Female Sockets, Receptacle | 6 ft | 1.83 m | Unshielded | Gold | DB9 | Plug, Male Pins | 0.76 Ám | 30 Áin | 9 | |
TE Connectivity AMP Connectors A7MFB-2506G | Female Sockets, Receptacle | 6 ft | 1.83 m | Unshielded | Gold | DB25 | Plug, Male Pins | 0.76 Ám | 30 Áin | ||
TE Connectivity AMP Connectors A7MFB-1506M | Multiple, Ribbon | Female Sockets, Receptacle | 6 ft | 1.83 m | Unshielded | Gold | DB15 | Plug, Male Pins | 0.76 Ám | 30 Áin | 15 |
TE Connectivity AMP Connectors A7MFB-2510G | Female Sockets, Receptacle | 10 ft | 3.05 m | Unshielded | Gold | DB25 | Plug, Male Pins | 0.76 Ám | 30 Áin | ||
TE Connectivity AMP Connectors A7MFB-0910M | Multiple, Ribbon | Female Sockets, Receptacle | 10 ft | 3.05 m | Unshielded | Gold | DB9 | Plug, Male Pins | 0.76 Ám | 30 Áin | 9 |
TE Connectivity AMP Connectors A7MFB-1510M | Multiple, Ribbon | Female Sockets, Receptacle | 10 ft | 3.05 m | Unshielded | Gold | DB15 | Plug, Male Pins | 0.76 Ám | 30 Áin | 15 |
Description
General part information
A7MFB Series

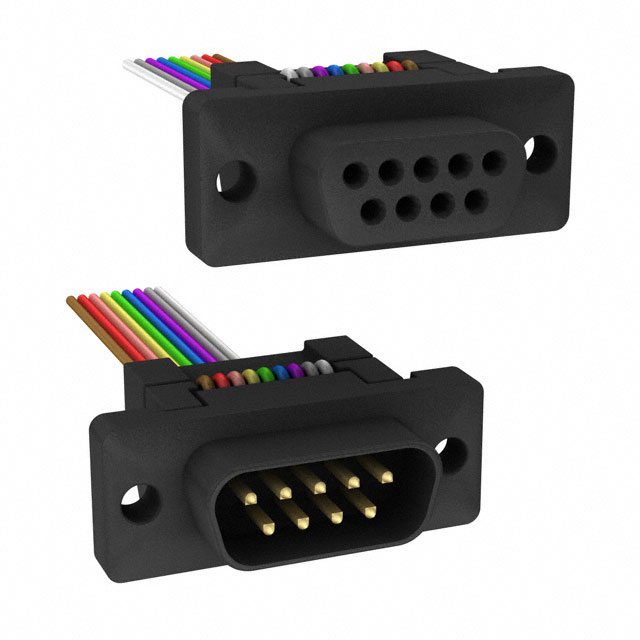

D-Sub Cable Assembly DB9 Multiple, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Plug, Male Pins Unshielded
