1415182

Active

Phoenix Contact

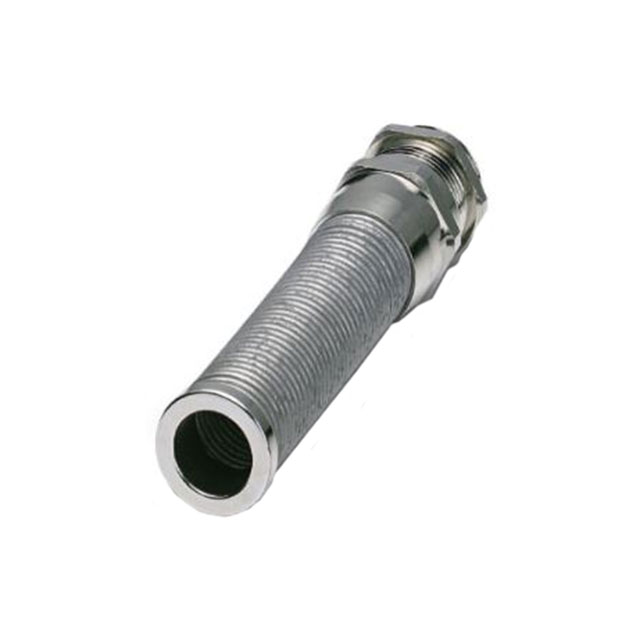

CABLE GLAND 6-13MM M20 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 6-13MM M20 BRASS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1415182	G-INB-M20 Series

Color	Silver	Light Gray, Silver, Black
Includes	Strain Relief, O-Ring, Seal	Strain Relief, O-Ring, Seal
Ingress Protection	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	IP68/IP69 - Dust Tight, Water Resistant, Waterproof
Material	Brass, Nickel Plated	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.512 in	0.512 in
Outside Cable Diameter (Max) [Max] [diameter]	13 mm	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in	0.236 in
Thread Length	0.236 in	0.236 - 0.472 in
Thread Length	6 mm	6 - 12 mm
Thread Size	M20	M20
Type	Cable Gland	Cable Gland

CABLE GLAND 6-13MM M20 POLYAMIDE

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Material	Includes	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Type
Phoenix Contact 1415174	6 mm	0.236 in	0.472 in	12 mm	Polyamide (PA), Nylon	O-Ring, Seal, Strain Relief	M20	0.512 in	13 mm	Light Gray	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	100 °C	-40 °C	Cable Gland
Phoenix Contact 1415182	6 mm	0.236 in	0.236 in	6 mm	Brass, Nickel Plated	O-Ring, Seal, Strain Relief	M20	0.512 in	13 mm	Silver	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	100 °C	-40 °C	Cable Gland
Phoenix Contact 1415179	6 mm	0.236 in	0.472 in	12 mm	Polyamide (PA), Nylon	O-Ring, Seal, Strain Relief	M20	0.512 in	13 mm	Black	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	100 °C	-40 °C	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 25.11

General part information

Cable Gland Brass, Nickel Plated M20 Silver
