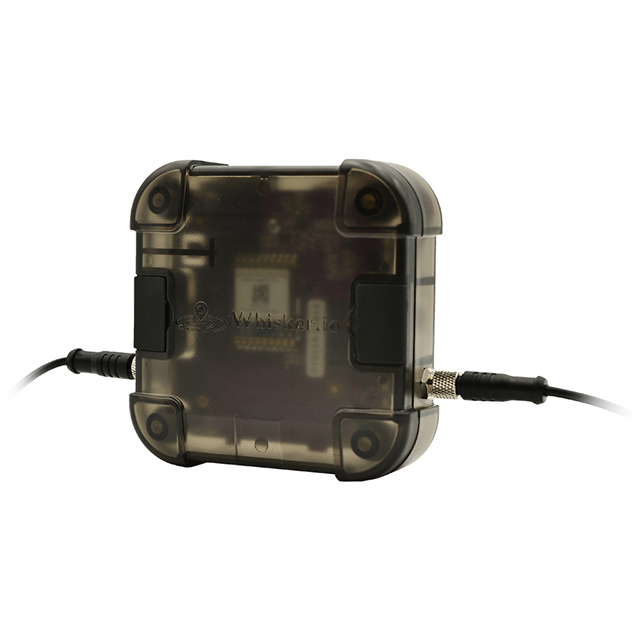

WB1-9-10-A5A5NNNN-0000-LR

Active

Digital Six Labs

SENSOR MULT TEMP/EXT 0-5V ANALOG

Search across all available documentation for this part.

Active

Digital Six Labs

SENSOR MULT TEMP/EXT 0-5V ANALOG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 259.00

General part information

Temperature, External 0-5V Analog Input Sensor Voltage, 900MHz Output

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	WB1-9-10-A5A5NNNN-0000-LR	WB1-9 Series

Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Voltage	Voltage
Output Type	900 MHz	900 MHz
Sensor Type	Temperature, External 0-5V Analog Input	Temperature, External Current Transformer Input, External 4-20mA Analog Input, Temp Probe Input, External Dry Contact, 4-20mA Analog Input, External Dry Contact Input, External Current Transformer, Temperature, External 0-5V Analog Input, Temperature, External Temp Probe Input

SENSOR MULT TEMP/EXT CURR TRANSF

Part	Output Type	Output Type	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]
Digital Six Labs WB1-9-00-C4NNNNNN-0000-LR	Voltage	900 MHz	External Current Transformer Input, Temperature	85 °C	-40 °C
Digital Six Labs WB1-9-10-A4NNNNNN-0000-LR	Voltage	900 MHz	External 4-20mA Analog Input, Temperature	85 °C	-40 °C
Digital Six Labs WB1-9-00-DCTRTRNN-0000-LR	Voltage	900 MHz	External Dry Contact, Temp Probe Input, Temperature	85 °C	-40 °C
Digital Six Labs WB1-9-00-DCA4NNNN-0000-LR	Voltage	900 MHz	4-20mA Analog Input, External Dry Contact, Temperature	85 °C	-40 °C
Digital Six Labs WB1-9-00-DCNNNNNN-0000-LR	Voltage	900 MHz	External Dry Contact Input, Temperature	85 °C	-40 °C
Digital Six Labs WB1-9-00-C4TRTRNN-0000-LR	Voltage	900 MHz	External Current Transformer, Temp Probe Input, Temperature	85 °C	-40 °C
Digital Six Labs WB1-9-10-A5A5NNNN-0000-LR	Voltage	900 MHz	Temperature, External 0-5V Analog Input	85 °C	-40 °C
Digital Six Labs WB1-9-00-NNNNNNNN-0000-LR	Voltage	900 MHz	Temperature	85 °C	-40 °C
Digital Six Labs WB1-9-00-TRTRNNNN-0000-LR	Voltage	900 MHz	Temperature, External Temp Probe Input	85 °C	-40 °C
Digital Six Labs WB1-9-00-DCTRNNNN-0000-LR	Voltage	900 MHz	External Dry Contact, Temp Probe Input, Temperature	85 °C	-40 °C
