AISC-1812H-1R5N-T
ObsoleteAbracon LLC
FIXED IND 1.5UH 1A 90 MOHM SMD
AISC-1812H-1R5N-T
ObsoleteAbracon LLC
FIXED IND 1.5UH 1A 90 MOHM SMD
Description
General part information
AISC-1812H-1R5N-T

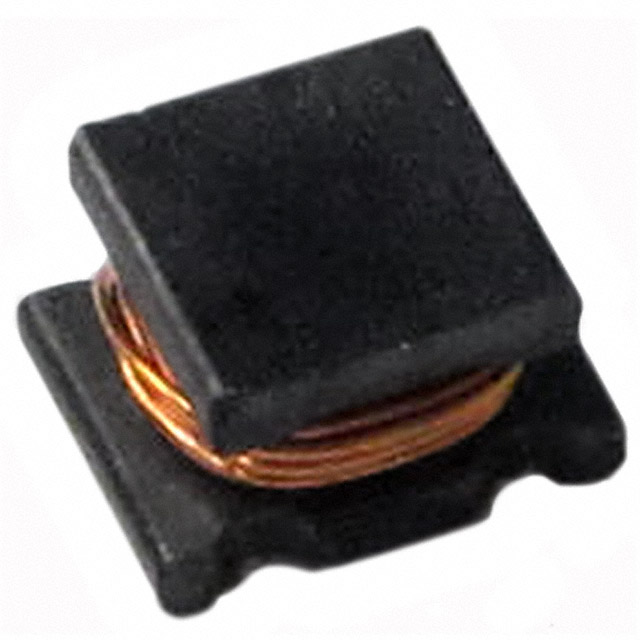

1.5 µH Unshielded Drum Core, Wirewound Inductor 1 A 90mOhm Max 1812 (4532 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | AISC-1812H-1R5N-T |
|---|---|
| Current Rating | 1 A |
| DC Resistance (DCR) (Max) | 90 mOhm |
| Frequency - Self Resonant | 85 MHz |
| Height - Seated (Max) | 0.11 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 1812 (4532 Metric) |
| Package Name | 1812 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.126 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
