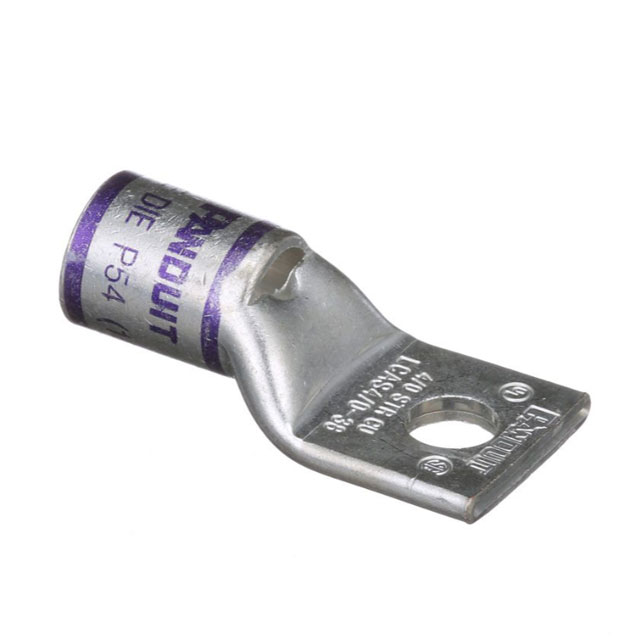

LCAS4/0-56-X
ObsoletePanduit Corp
CONN TERM RECT TONG 4/0AWG #5/16
LCAS4/0-56-X
ObsoletePanduit Corp
CONN TERM RECT TONG 4/0AWG #5/16
Description
General part information
LCAS4/0-56-X
Terminal Connector Rectangular Rectangular Tongue 4/0 AWG 5/16 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | LCAS4/0-56-X |
|---|---|
| Color | Purple |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.57 in |
| Diameter - Barrel OD | 0.71 in |
| Diameter - Ring ID | 0.34 in |
| Insulation | Non-Insulated |
| Length - Overall | 2.1 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.3125 in |
| Stud/Tab Size | 16 Stud, 5 Stud |
| Stud/Tab Size (Type) | Stud |
| Tab Thickness | 0.14 in |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Barrel, Crimb |
| Width - Outer Edges | 1.06 in |
| Wire Gauge | 4/0 AWG |
